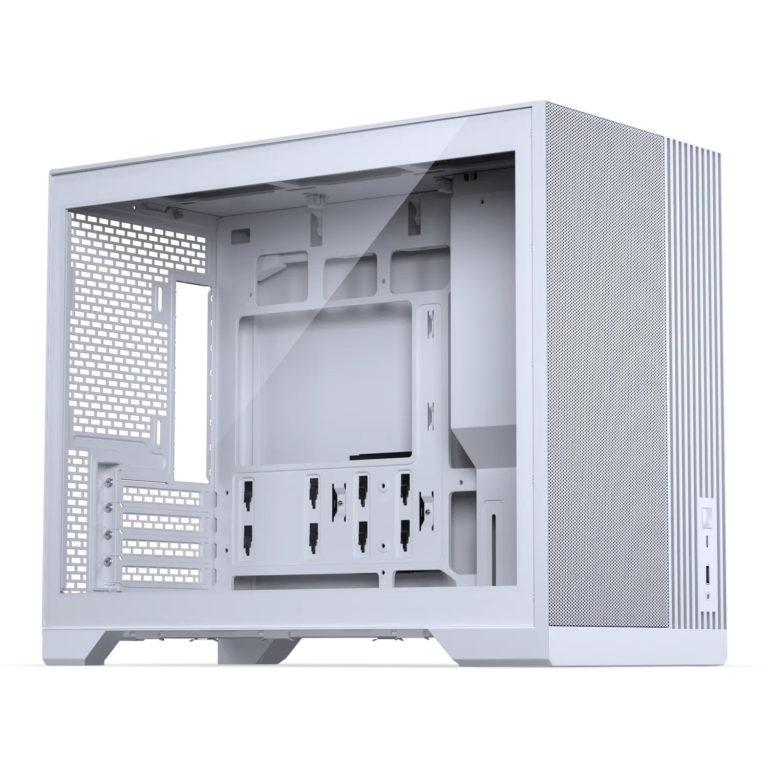

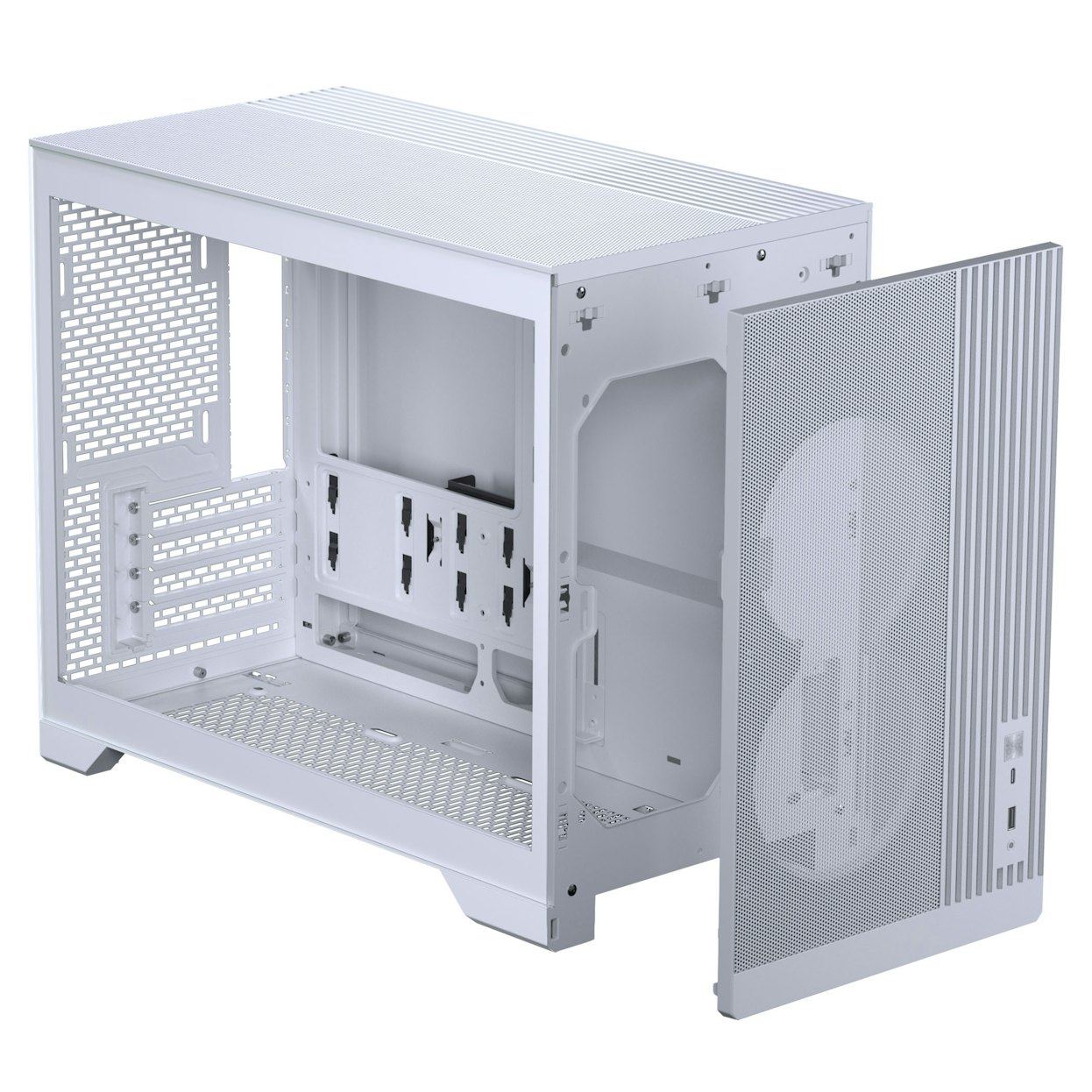

Phanteks XT M3 Mini Tower Gaming Case - White

Compare

Phanteks XT M3 Mini Tower Gaming Case - White

PH-XT325M_WT01

Key Features:

Max Motherboard Size: mATX
Tempered Glass Side
Front USB Type-C Port
2 x 2.5" / 1 x 3.5" Bay(s)
Back Connect Support

The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance. With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.

Colour

Colour:

Phanteks XT M3 Mini Tower Gaming Case - White

PH-XT325M_WT01

£48.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

6 In Stock Now

Order within

CCL Code: CAS5624

Max Motherboard Size: mATX
Tempered Glass Side
Front USB Type-C Port
2 x 2.5" / 1 x 3.5" Bay(s)
Back Connect Support

Colour

Colour:

Overview

Compact Gaming Chassis

Supports a total of nine 120 fans for powerful cooling within this compact chassis.
Dedicated 360 radiator space in the top of the chassis.
Triple fan locations in the bottom for direct GPU cooling.

Organised by Design

Spacious cable routing area for clean and efficient management.
Fully compatible with Rear-Connect mainboards for streamlined builds.

Fan Positions

3x 120 mm top fans.
2x 120 mm front fans.
1x 120 mm rear fan.
3x 120 mm bottom fans.

Radiator Positions

1x 360 top radiator up to 410 x 122 x 60 mm

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

Storage

Internal Expansion Bays

2 x 2.5"
1 x 3.5"

Expansion

Expansion Slots

4 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Top: Supports 3 x 120mm fans Front: Supports 2 x 120mm fans Rear: Supports 1 x 120mm fan Bottom: Supports 3 x 120mm fans
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mini Tower
Case Colour	White
Material	Steel Tempered Glass ABS
Motherboard Compatibility	mATX Mini-ITX
In The Box	Case Accessory Box
Width	235 mm
Depth	460 mm
Height	370 mm
Weight	5.57 kg

Warranty

5 Years

Key Features

Max Motherboard Width	244 mm
Max Motherboard Height	244 mm
Supports AIO Cooler	Yes
Main Colour	White
Case Type	Tower
Case Form Factor	Mini Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	No
L.E.D Fan	No LED
Max 3.5" Drives	1
Max 2.5" Drives	2
ATX	No
Micro-ATX	Yes
ITX	Yes
E-ATX	No
Cooler Height	175 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Side Panel Type	Tempered Glass
GPU Length	430 mm
PSU Depth	150 mm
RGB LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	mATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	2
USB3.0 ports	1
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	360 mm
Create Your Own Gaming PC (CCL)	No
Back Connect Support	Yes
