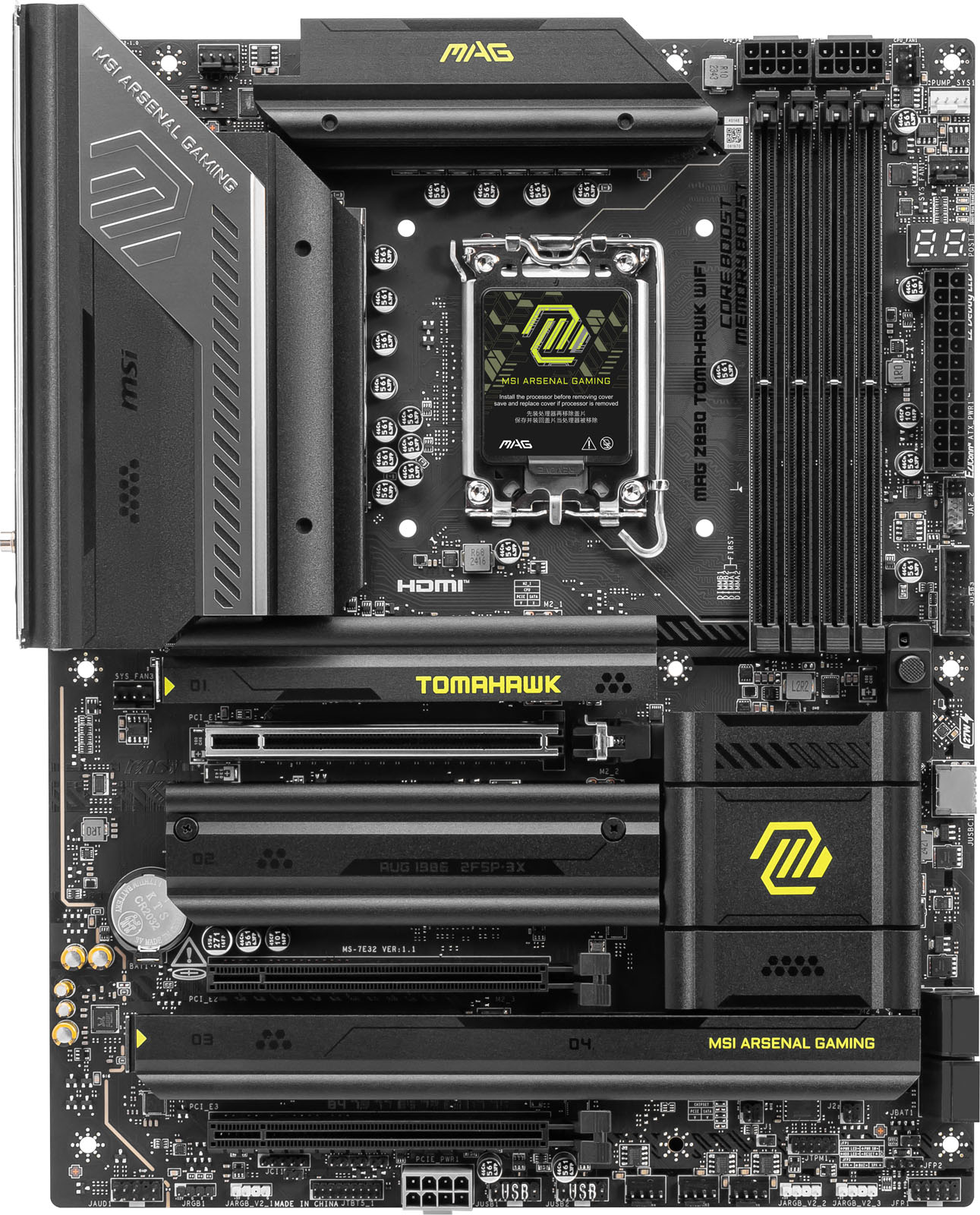

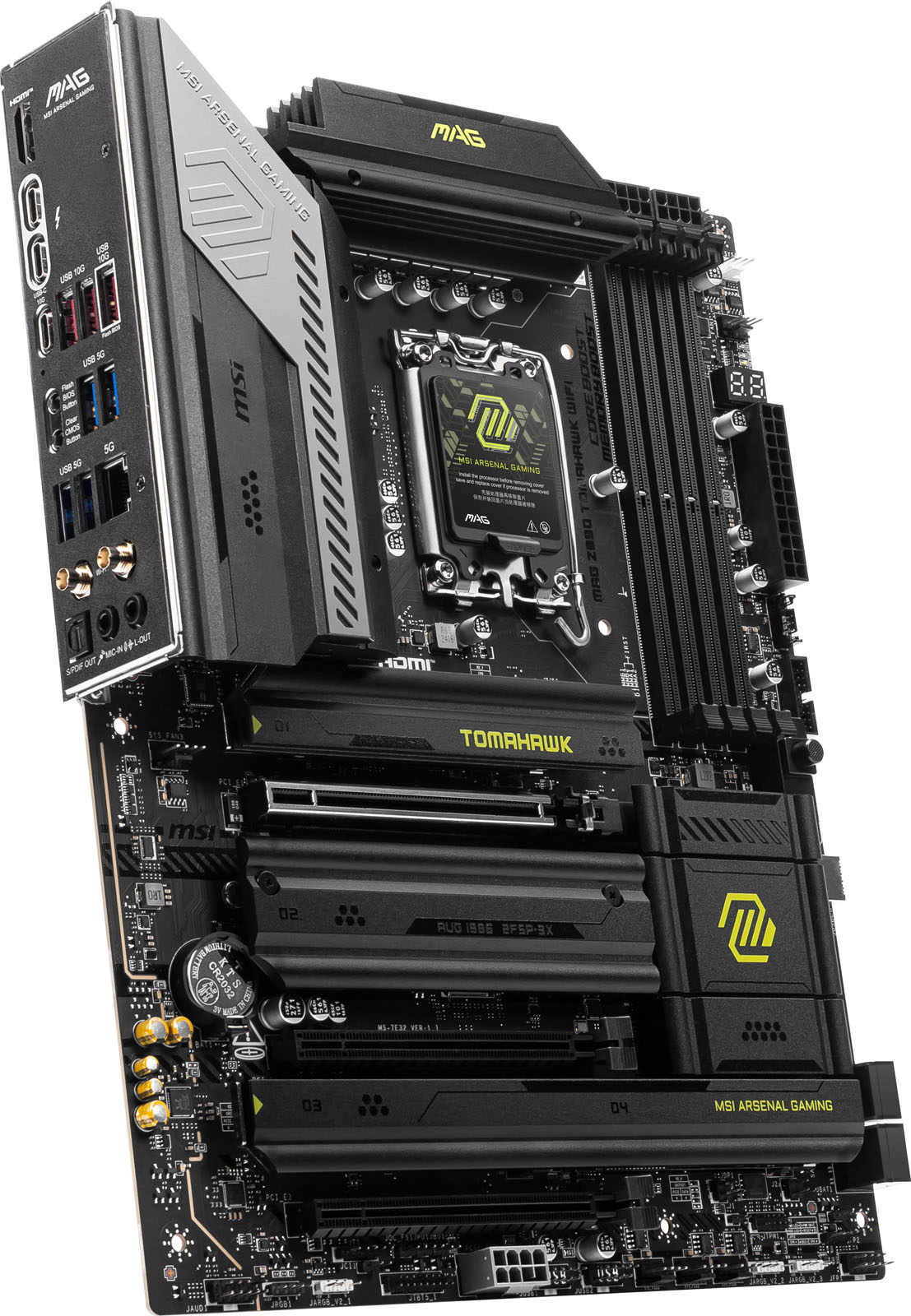

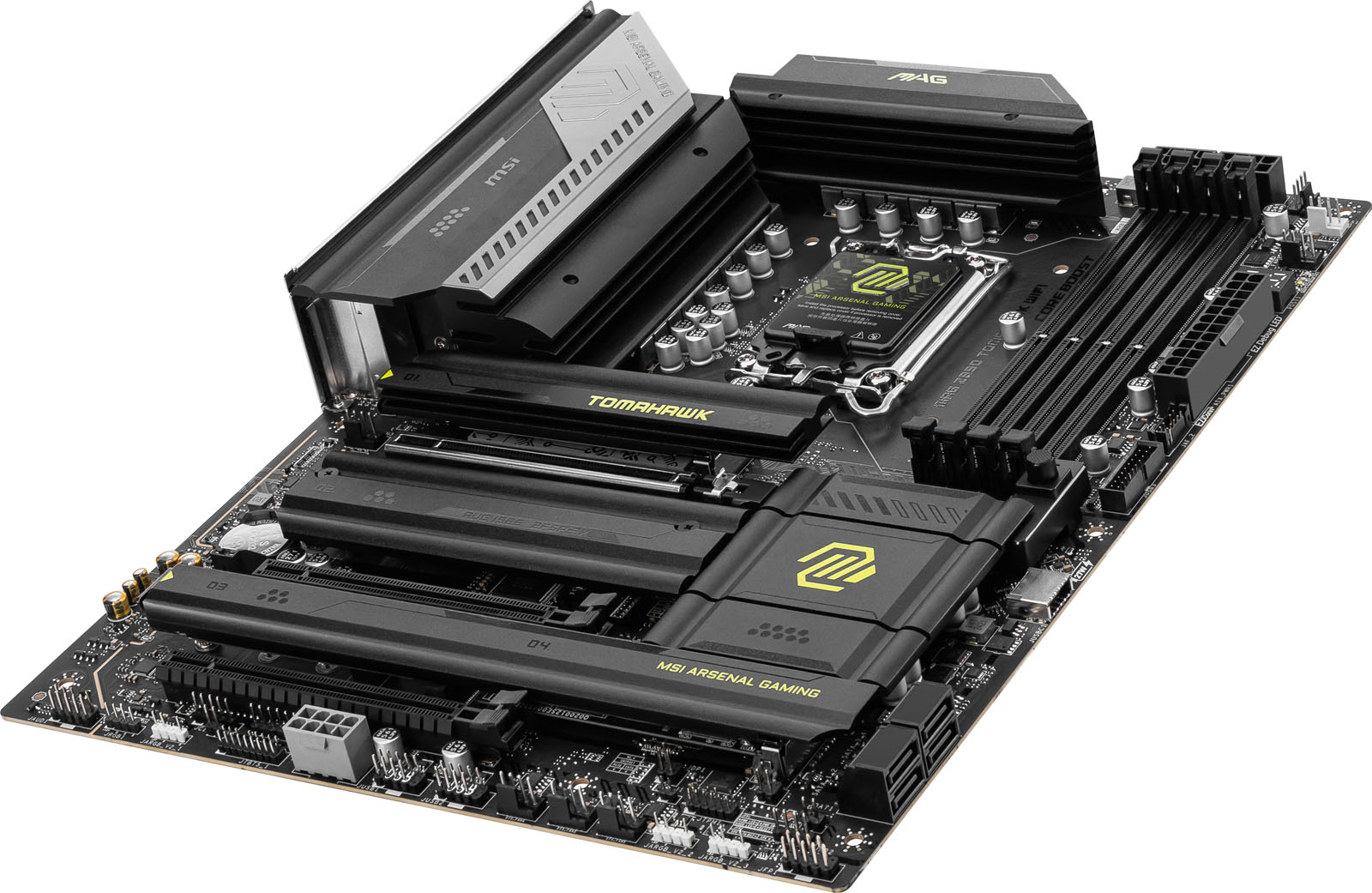

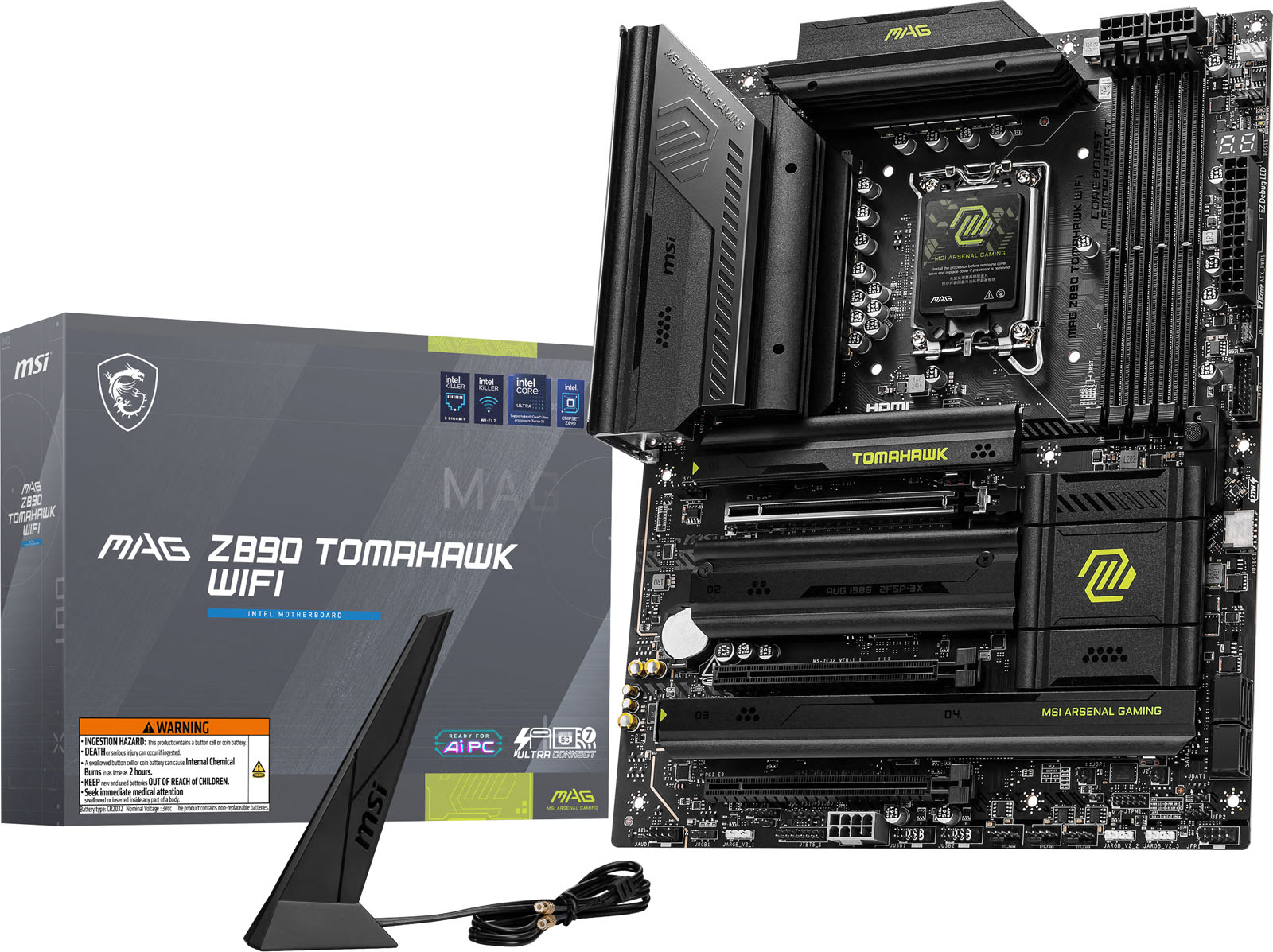

The MAG Z890 TOMAHAWK WIFI motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: ATX

Socket Type: LGA 1851

Chipset: Intel Z890

With exclusive Core Boost technology and dual 8 pin power connectors, the MAG Z890 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 16 Duet Rail Power System (90A / SPS)
• 1-Phase SA Power
• 1-Phase GT Power
• 1-Phase VNNAON Power

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 9200+ MT/s OC, supports Intel XMP.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II** and EZ PCIe Release)

2 x PCIe 4.0/3.0 x16 slots*

*Support x16/x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The MAG Z890 TOMAHAWK WIFI motherboard features the latest M.2 slots:

1 x Gen5 x4 128Gbps slot* (with double-sided M.2 Shield Frozr)

3 x Gen4 x4 64Gbps slots*

*with EZ M.2 Shield Frozr II

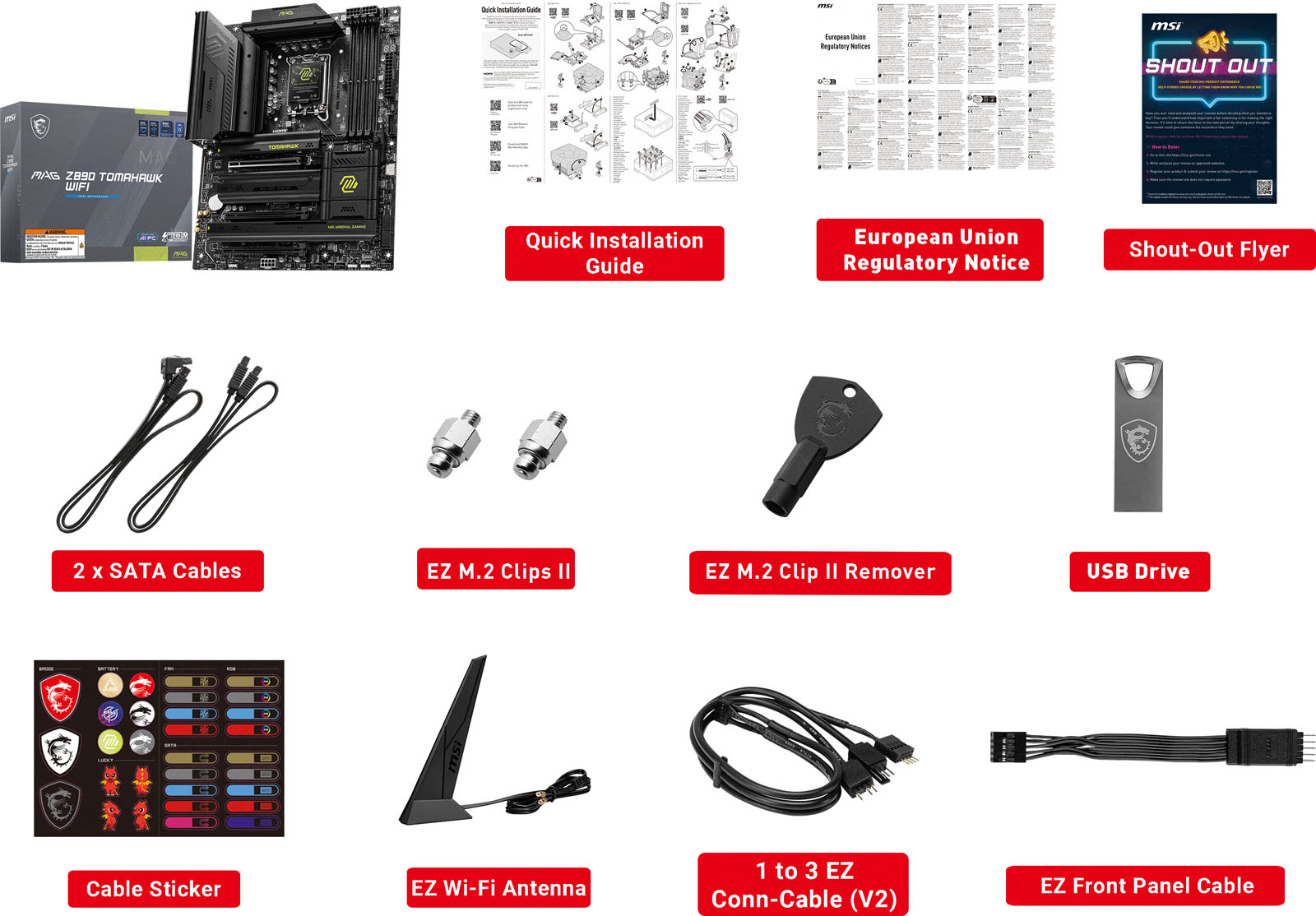

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

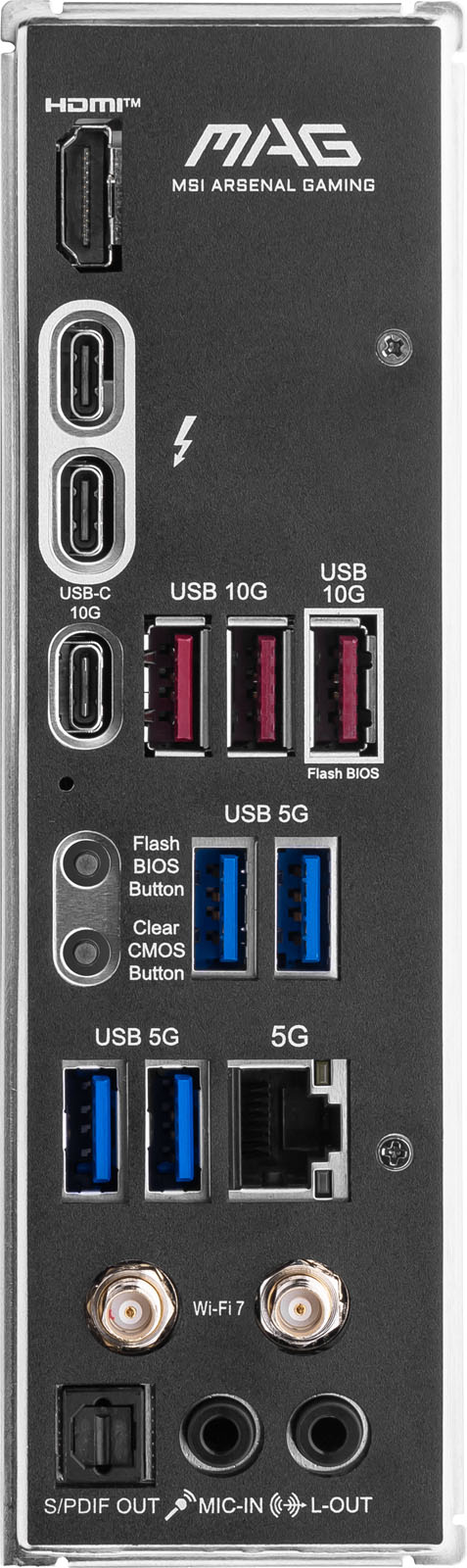

5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 4 & S/PDIF output.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
