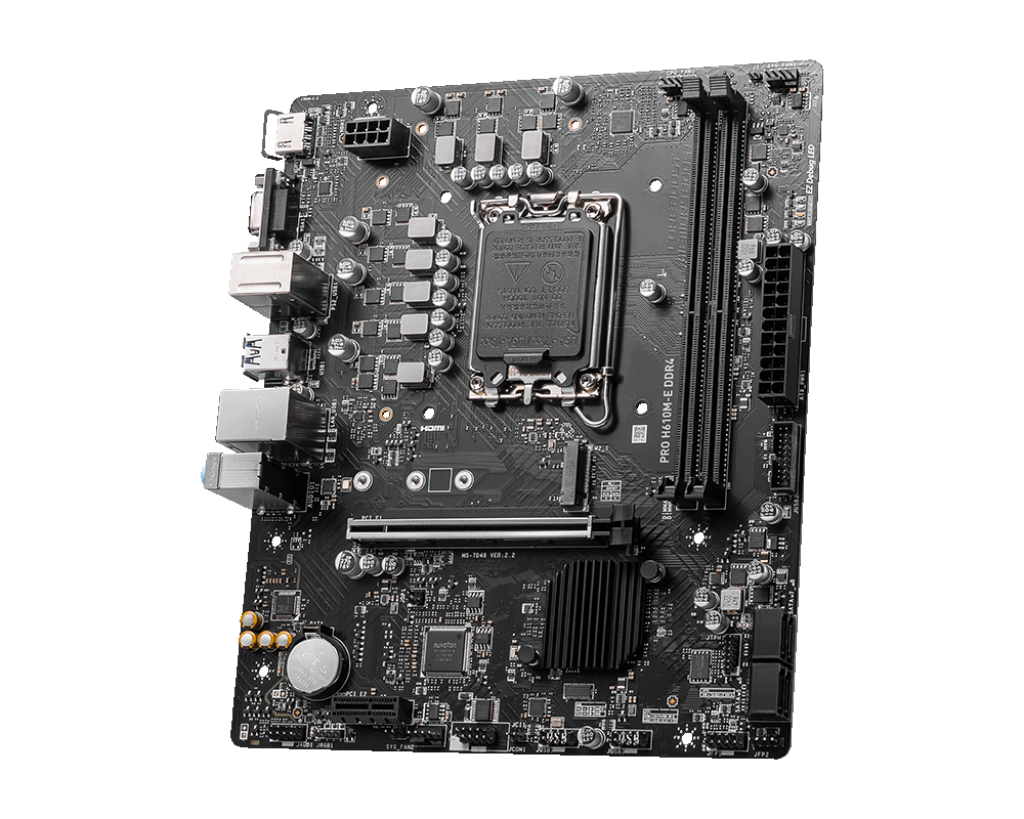

MSI PRO H610M-E DDR4 mATX Motherboard for Intel LGA1700 CPUs

Compare

MSI PRO H610M-E DDR4 mATX Motherboard for Intel LGA1700 CPUs

PRO H610M-E DDR4

Key Features:

Form Factor: mATX
Socket: LGA1700
Memory: DDR4 (Max: 64GB)
Storage: 1 x M.2, 4 x SATA
USB: 4 port(s)

MSI PRO H610M-E DDR4 mATX Motherboard for Intel LGA1700 CPUs

PRO H610M-E DDR4

Was £67.82

SAVE 19%

Now only

£54.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

20+ In Stock Now

Order within

CCL Code: MBD3579

Form Factor: mATX
Socket: LGA1700
Memory: DDR4 (Max: 64GB)
Storage: 1 x M.2, 4 x SATA
USB: 4 port(s)

Overview

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

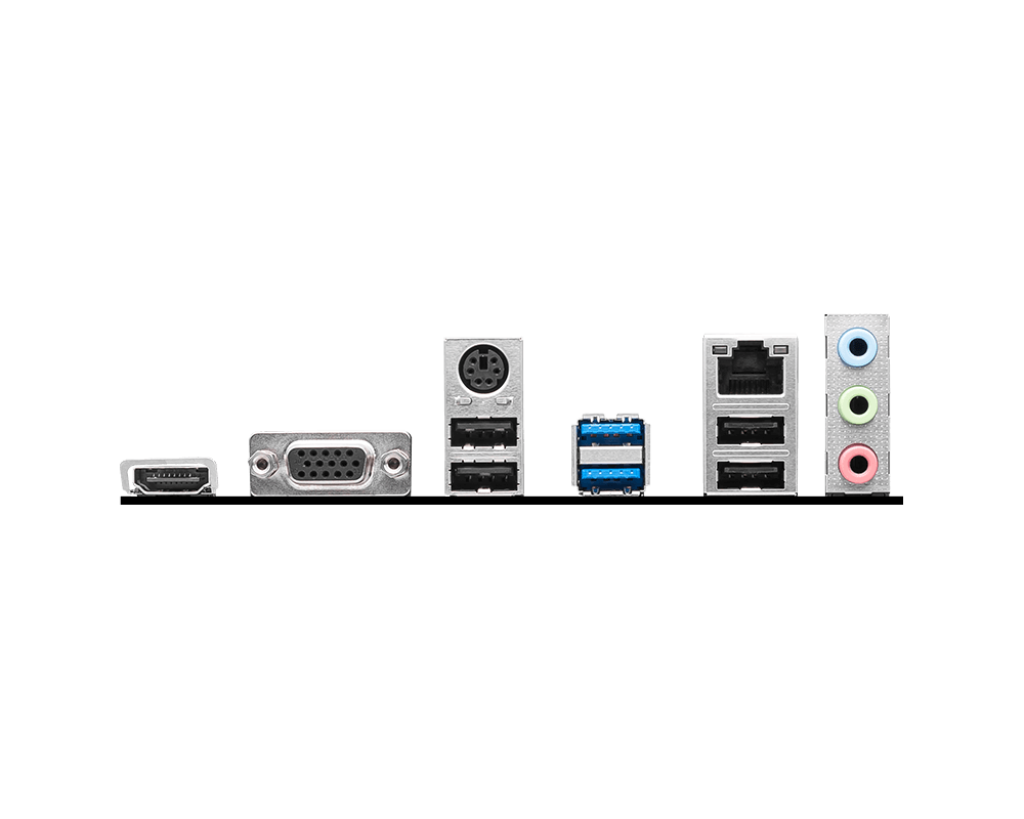

Rear Panel I/O Ports

USB Ports	2 x USB 3.0 4 x USB 2.0
HDMI Port	1 x HDMI 1.4
VGA Port	1 x D-Sub
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3) 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 3200 MHz
Memory Type	DDR4
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel H610
RAID Supported	No
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

Integrated Network	Realtek RTL8111H
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard Quick Installation Guide M.2 Clip 2 x SATA Cables I/O Shield
Width	200 mm
Length	236 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	200 mm
Motherboard Height	236 mm
mSATA Supported	No
U.2 Supported	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	4 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel H610
Thunderbolt	No
Motherboard Model	MSI PRO H610M-E DDR4
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	4-Pin RGB
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
