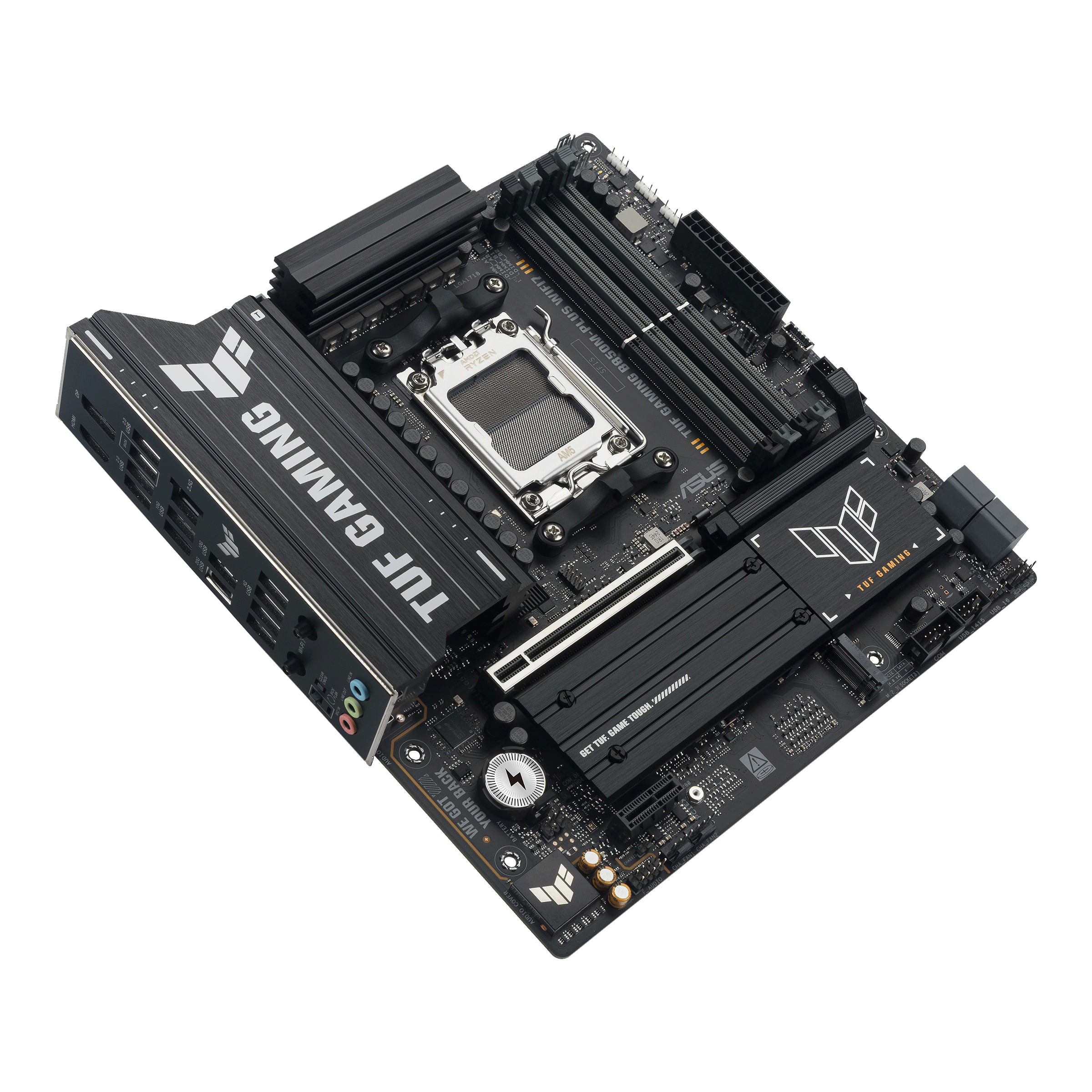

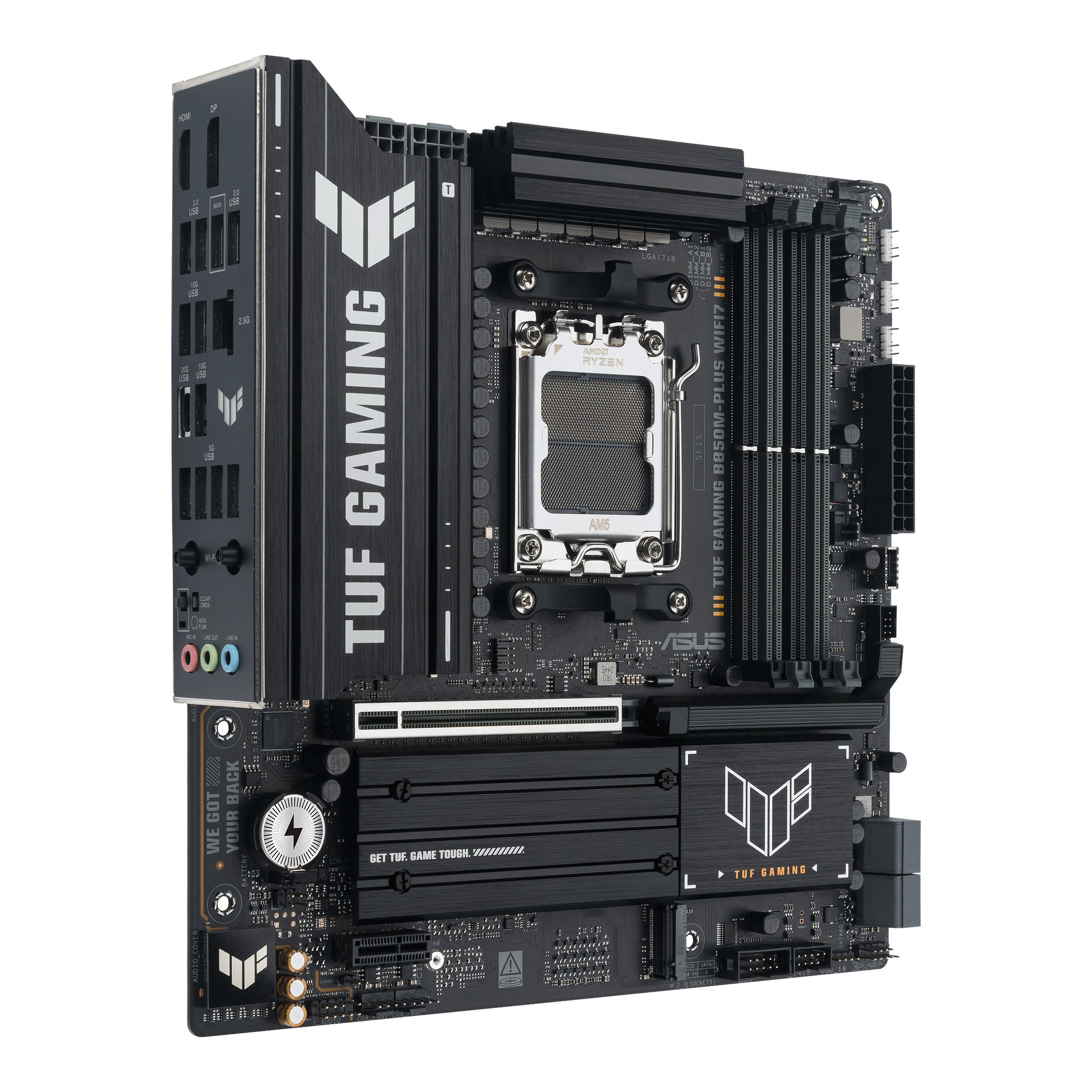

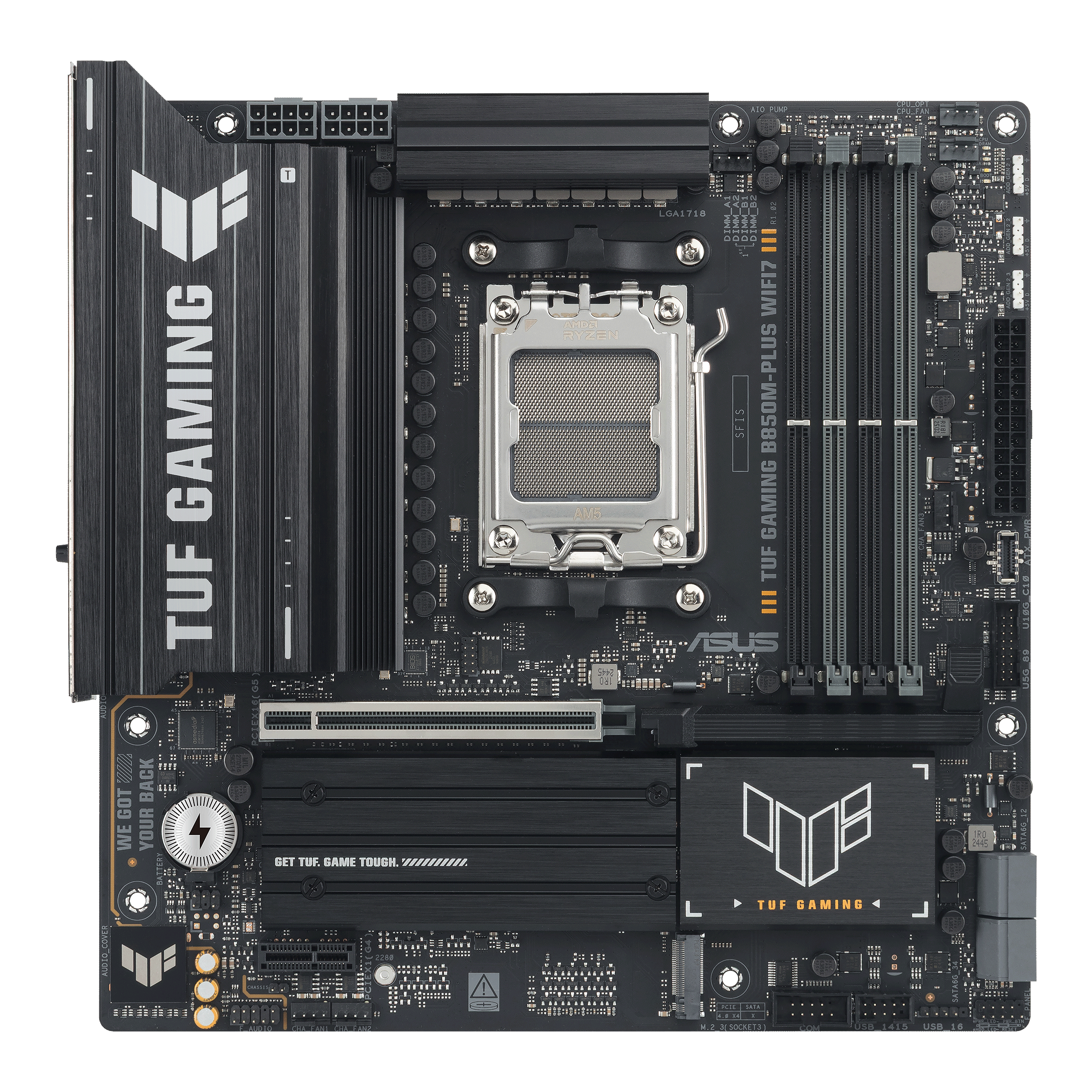

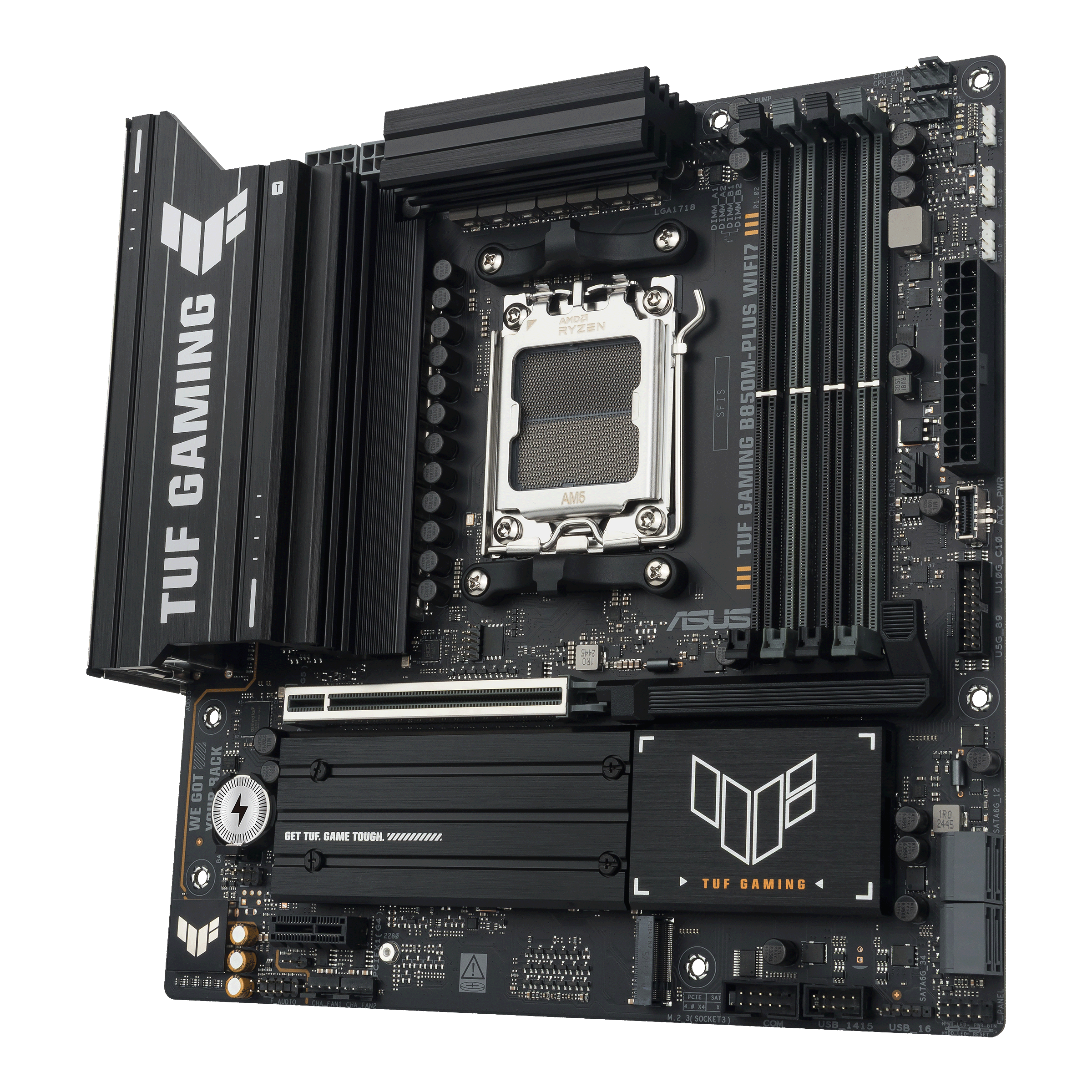

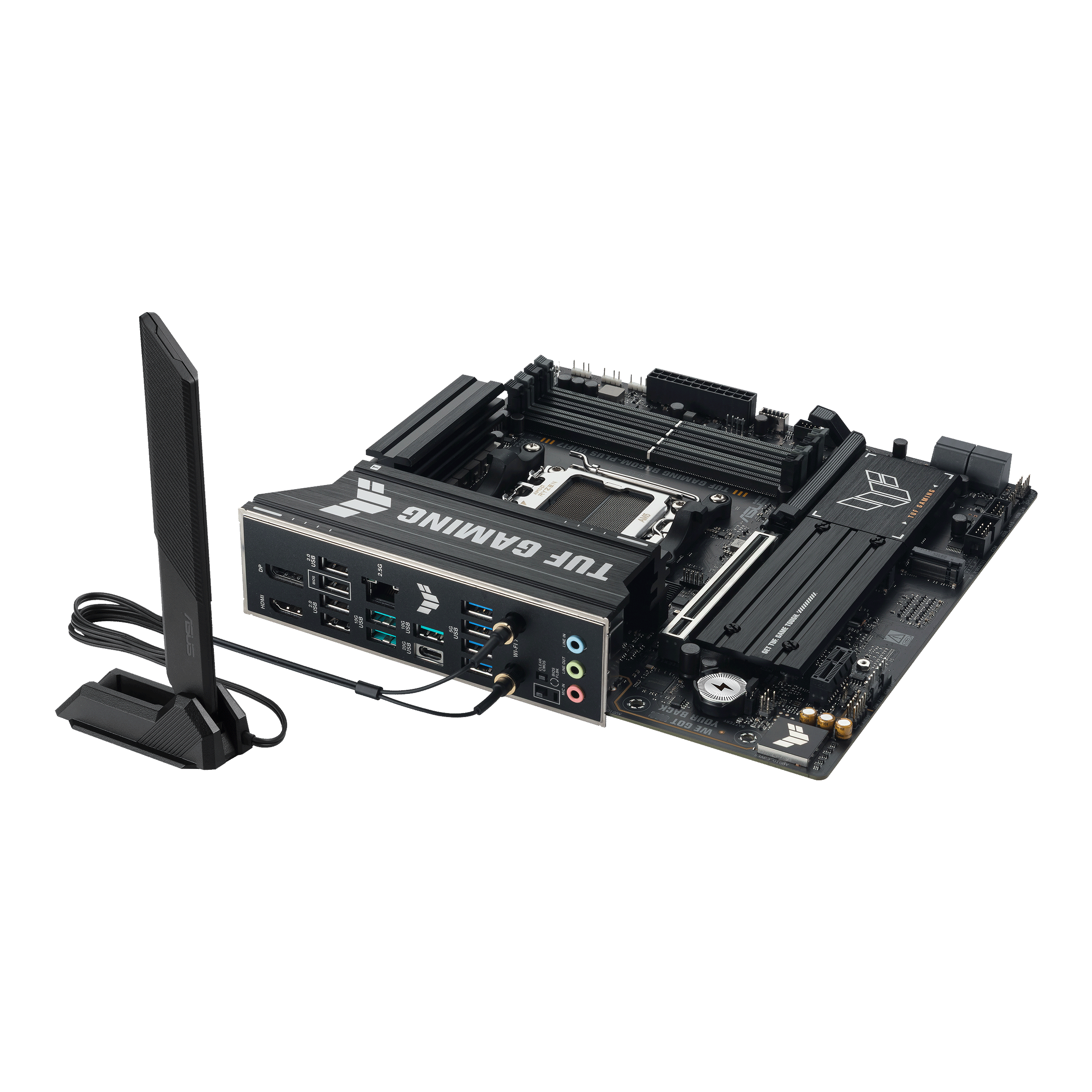

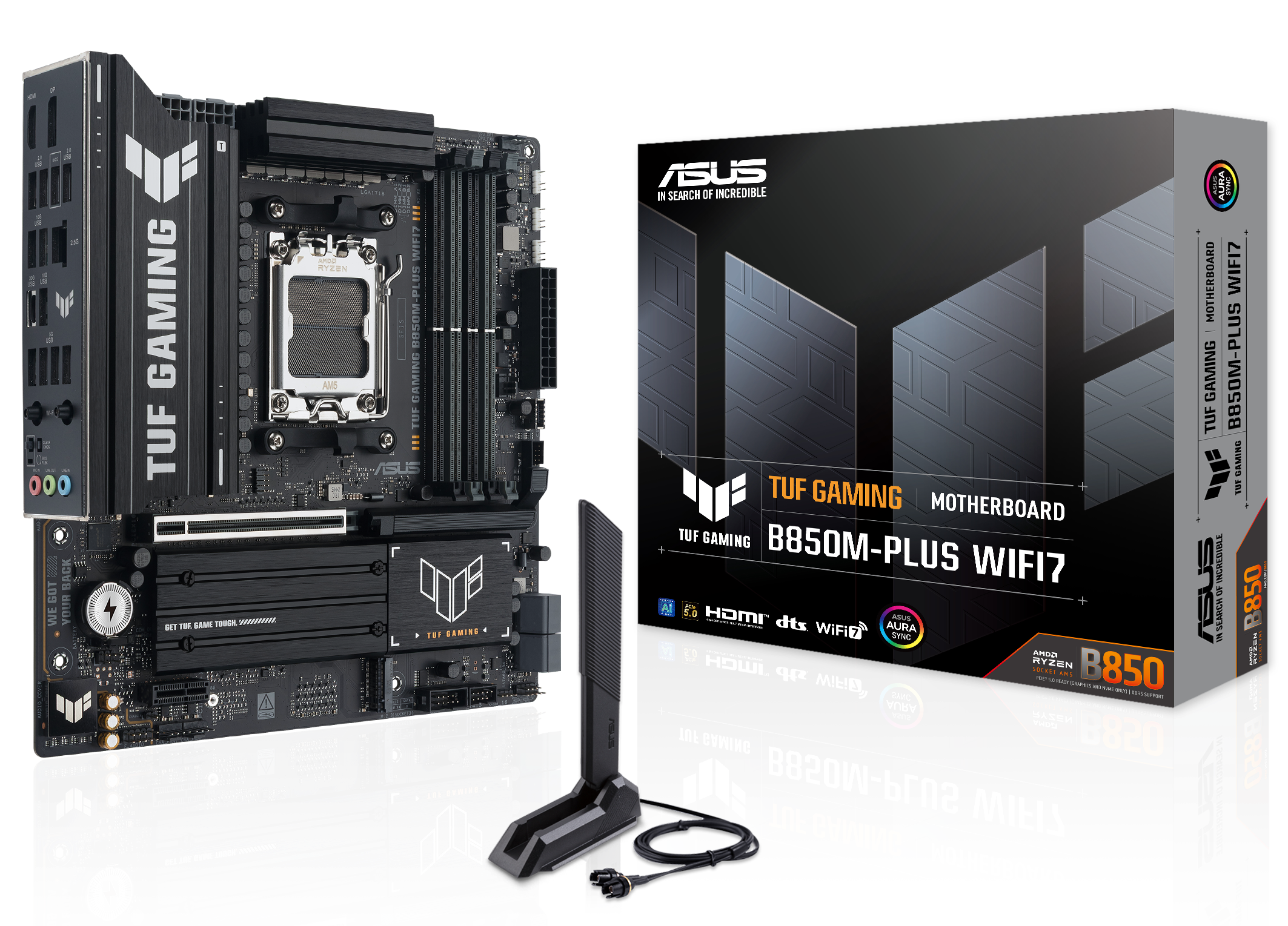

ASUS TUF Gaming B850M-PLUS WIFI7 mATX Motherboard for AMD AM5 CPUs

Compare

ASUS TUF Gaming B850M-PLUS WIFI7 mATX Motherboard for AMD AM5 CPUs

90MB1MU0-M0EAY0

Key Features:

Form Factor: mATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 3 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 12 port(s)

ASUS TUF Gaming B850M-PLUS WIFI7 mATX Motherboard for AMD AM5 CPUs

90MB1MU0-M0EAY0

Was £205.98

SAVE £5

Now only

£199.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

CCL Code: MBD3939

Form Factor: mATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 3 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 12 port(s)

Overview

ASUS TUF GAMING B850M-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

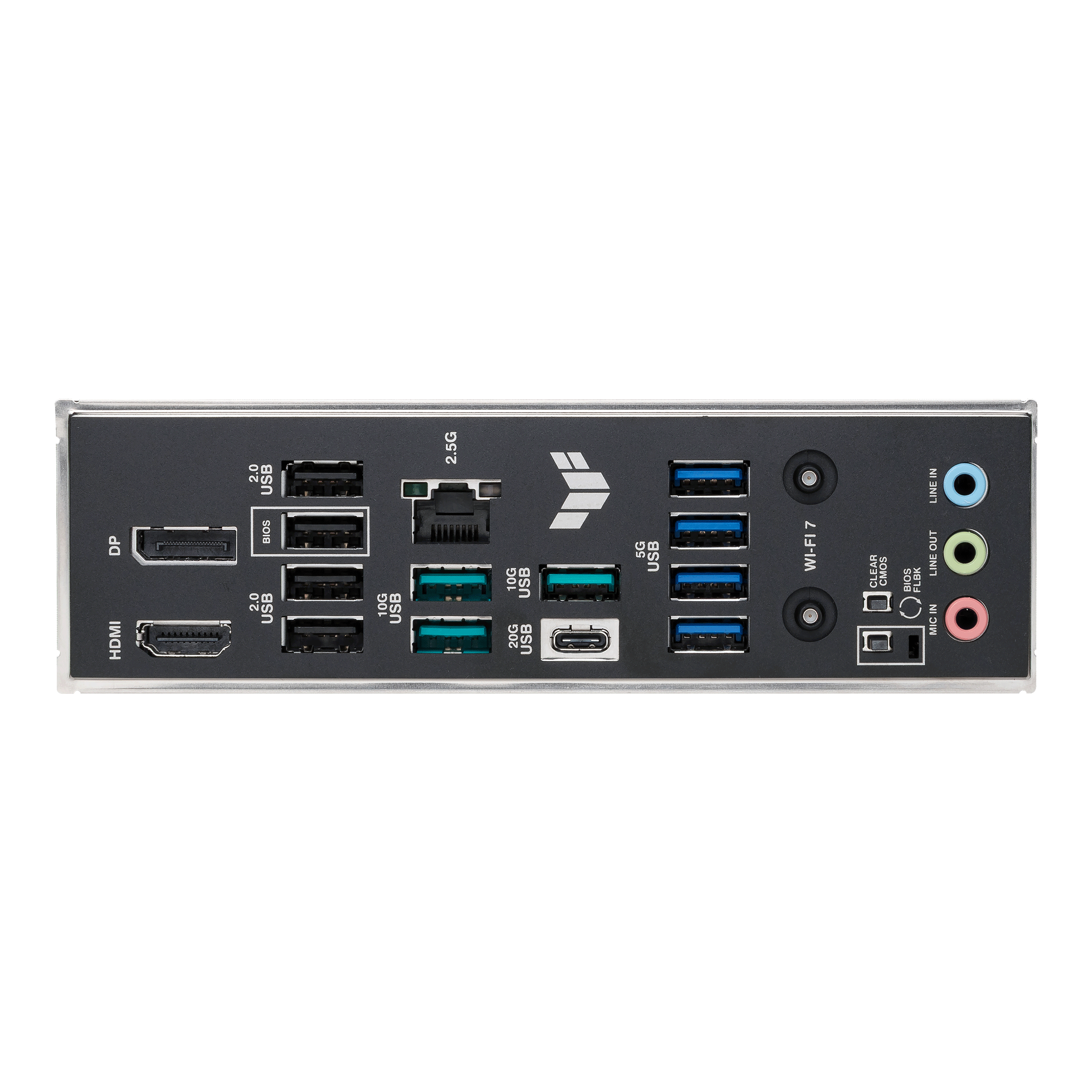

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 3 x USB 3.1 4 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 3 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 3 x Chassis fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusio nheader
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers

Memory

Memory Bus Speed	Up to 8000 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B850
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1220P

Warranty

3 Years

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 1 x M.2 rubber package 1 x Screw package for M.2 SSD 1 x Quick start guide
Width	244 mm
Length	244 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming B850M-PLUS WIFI7
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	3
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
