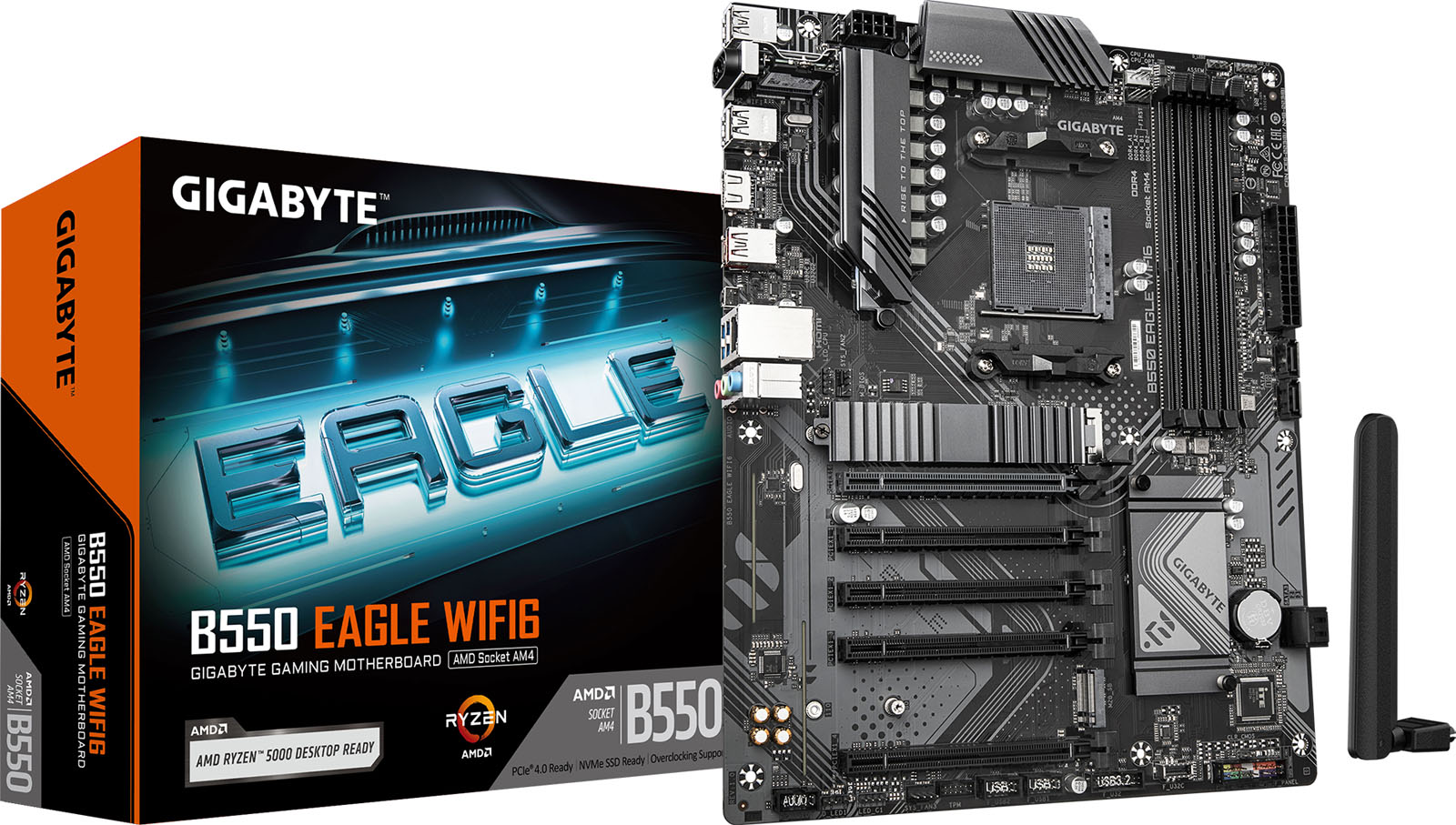

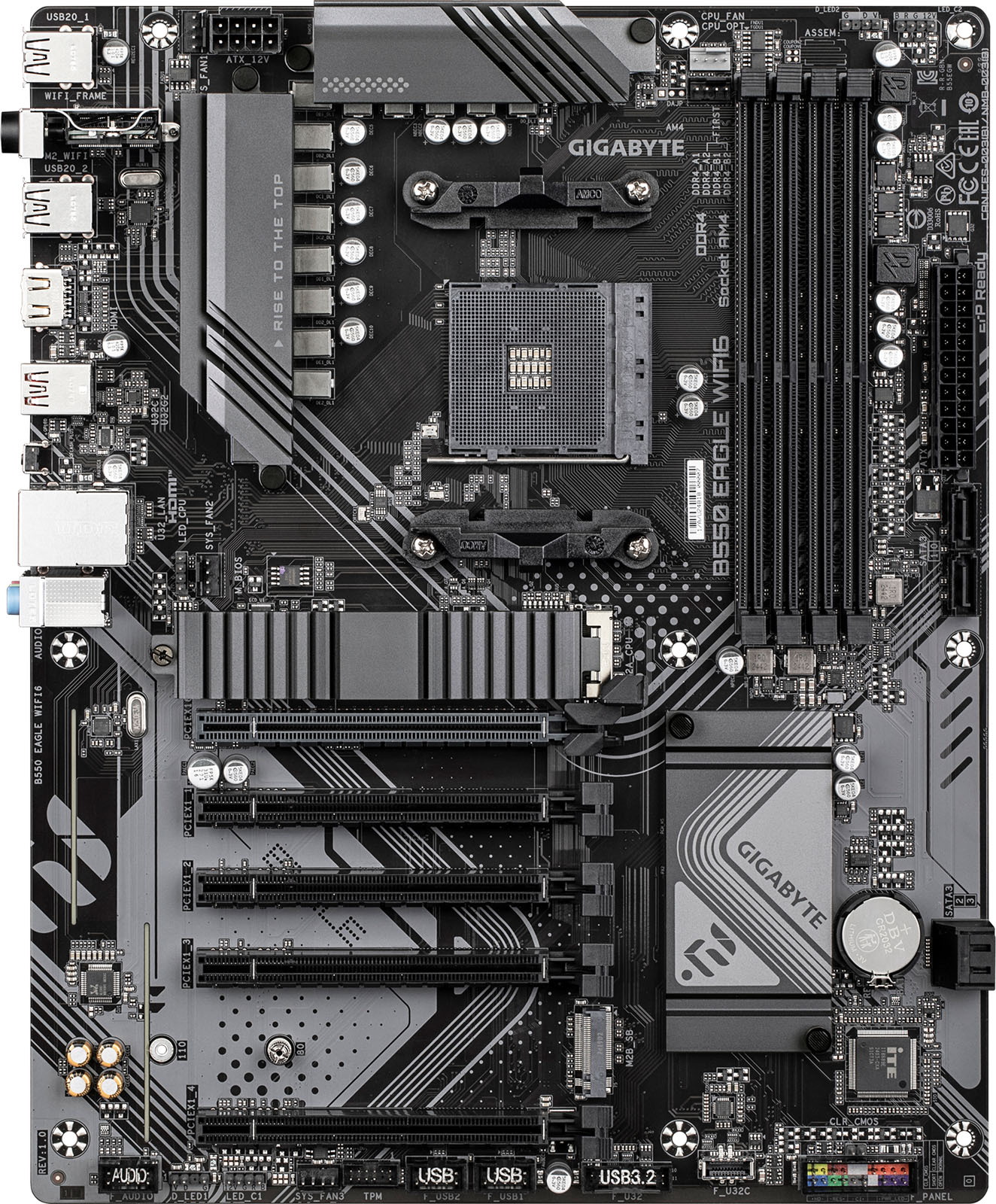

Gigabyte B550 EAGLE WIFI6 ATX Motherboard for AMD AM4 CPUs

Compare

Gigabyte B550 EAGLE WIFI6 ATX Motherboard for AMD AM4 CPUs

B550 EAGLE WIFI6

Key Features:

Form Factor: ATX
Socket: AM4
Memory: DDR4 (Max: 128GB)
Storage: 2 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 8 port(s)

Gigabyte B550 EAGLE WIFI6 ATX Motherboard for AMD AM4 CPUs

B550 EAGLE WIFI6

Was £143.99

SAVE £51

Now only

£92.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

4 In Stock Now

Order within

CCL Code: MBD3889

Form Factor: ATX
Socket: AM4
Memory: DDR4 (Max: 128GB)
Storage: 2 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 8 port(s)

Overview

AMD Socket AM4: Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital twin 10+3+1 phases VRM solution
Dual Channel DDR4: 4 x DIMMs with AMD EXPO™ Memory Module Support
EZ-Latch: PCIe slots with Quick Release Design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1
Efficient Thermal: VRM Thermal Armor Advanced
Fast Networking: GbE LAN & Wi-Fi 6
Extended Connectivity: HDMI, Displayport
PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 5000 / 4000 / 3000 Series Processors
64-bit Support	Yes
Socket	AM4

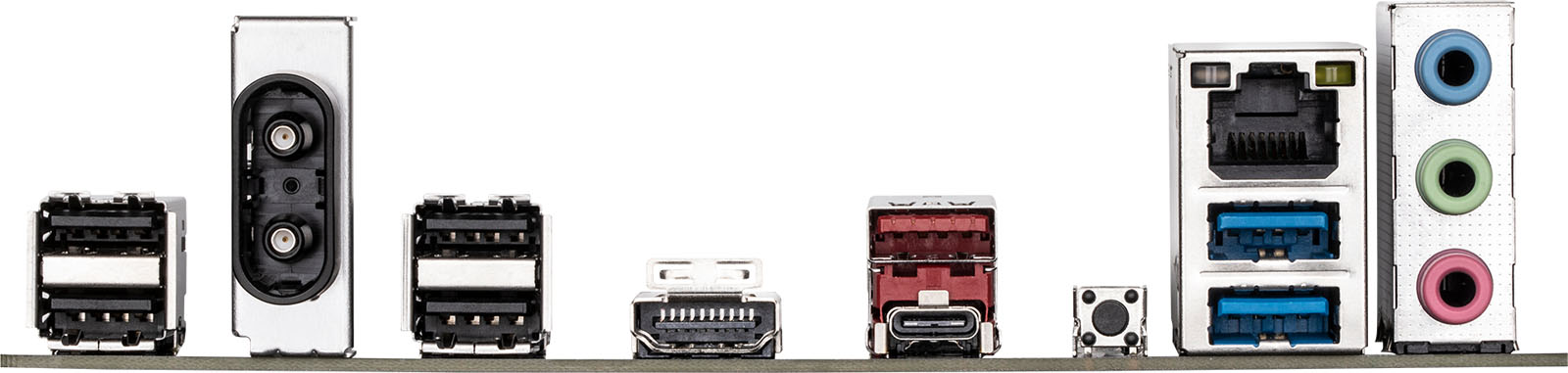

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 1 x USB-C 3.0 2 x USB 3.0 4 x USB 2.0
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 3 x System fan headers
TPM Header	1 x TPM header (2x6 pin, for the GC-TPM2.0_S module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4 or SATA) 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen3) 2 x 3-pin ARGB headers 2 x 4-pin RGB headers

Memory

Memory Bus Speed	Up to 3200 MT/s
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B550
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
4 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek

Warranty

3 Years

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	Yes - Wi-Fi 6
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B550
Thunderbolt	No
Motherboard Model	Gigabyte B550 EAGLE WIFI
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
