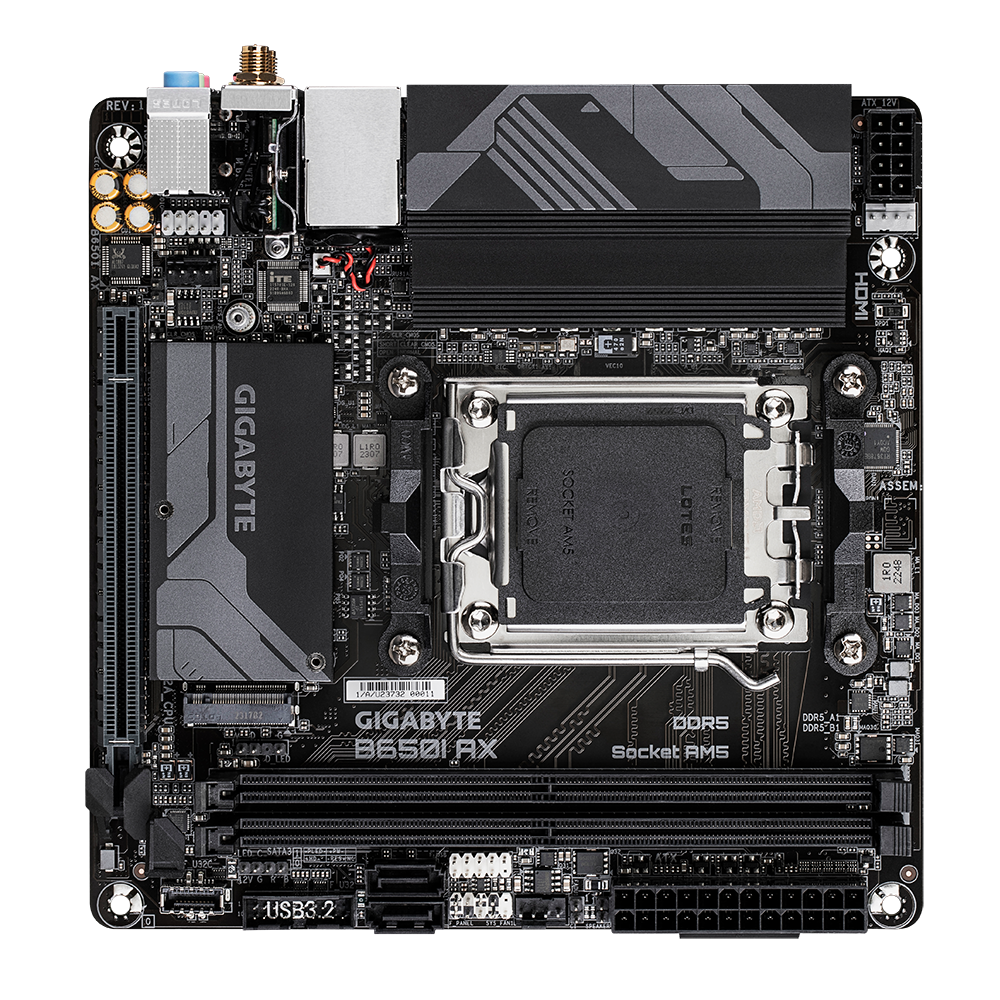

Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs

Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs

CCL Code: MBD3678

Was £169.99

SAVE £37

Now only

£132.99 inc VAT

  • Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs
  • Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs
  • Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs
  • Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs
  • Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs

Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs

B650I AX

Key Features:

  • Form Factor: ITX
  • Socket: AM5
  • Memory: DDR5 (Max: 96GB)
  • Storage: 1 x M.2, 2 x SATA
  • Wi-Fi: Built-in
  • USB: 6 port(s)

Save 5% when you buy from 3 or more different categories with code BUY3GET5

Gigabyte B650I AX ITX Motherboard for AMD AM5 CPUs

B650I AX

Was £169.99

SAVE £37

Now only

£132.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

CCL Code: MBD3678
  • Form Factor: ITX
  • Socket: AM5
  • Memory: DDR5 (Max: 96GB)
  • Storage: 1 x M.2, 2 x SATA
  • Wi-Fi: Built-in
  • USB: 6 port(s)

Save 5% when you buy from 3 or more different categories with code BUY3GET5

Overview

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Main Features

  • AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
  • Unparalleled Performance: 5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*SMD DIMMs with AMD EXPOT & Intel© XMP Memory Module Support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity: DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.



Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000/ Ryzen 8000 Series Processors
64-bit Support Yes
Socket AM5

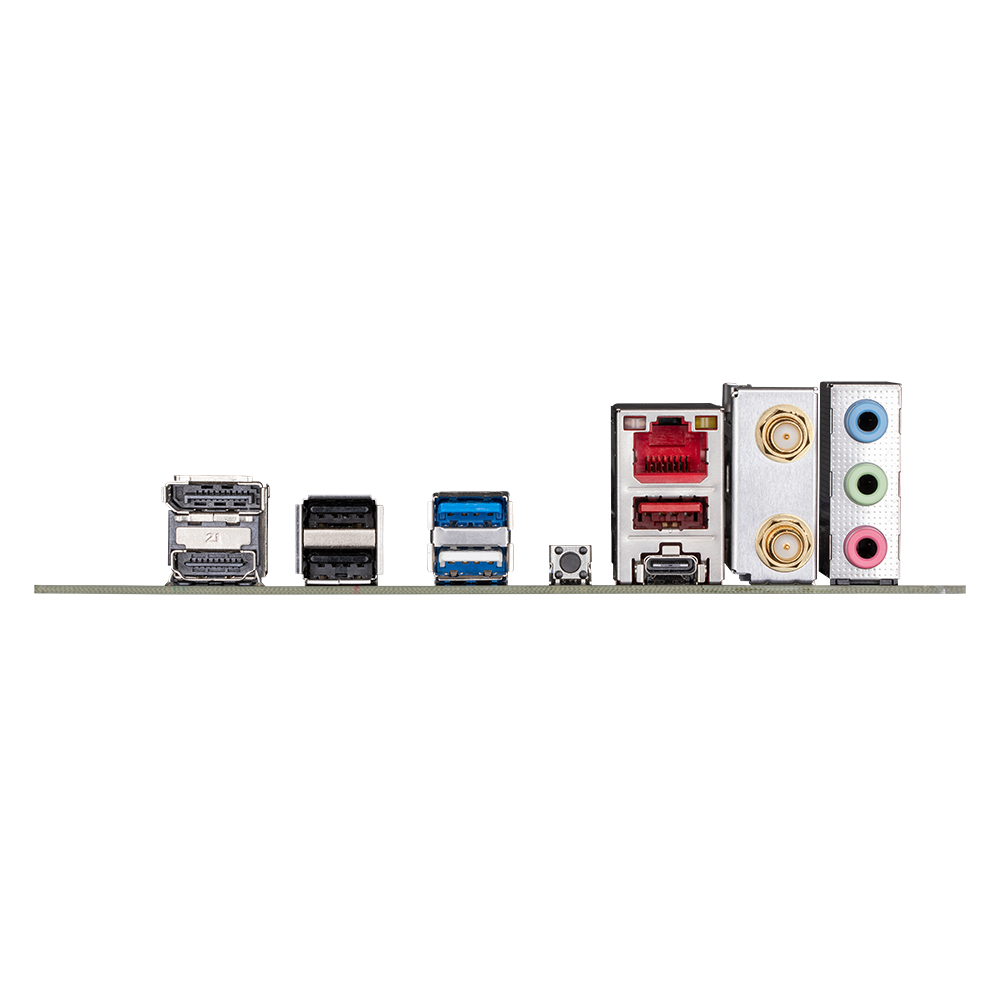

Rear Panel I/O Ports

USB Ports 1 x USB 3.1
1 x USB-C 3.0
1 x USB 3.0
3 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 2 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 6400 MT/s
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Mini-ITX Motherboard
Width 170 mm
Length 170 mm

Key Features

Wireless Network Yes
Motherboard Width 170 mm
Motherboard Height 170 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 2 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model Gigabyte B650I AX
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 30 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 6400 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
SATA ports 2
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Item Details

Manufacturer Gigabyte
Manufacturer Code B650I AX
EAN 4719331859190
UPC 889523040003
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B650I AX
