ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

Compare

ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

90MB1IG0-M0EAY0

Key Features:

Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 4 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 11 port(s)

ASUS ProArt X870E-Creator WiFi ATX Motherboard for AMD AM5 CPUs

90MB1IG0-M0EAY0

£486.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

CCL Code: MBD3700

Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 4 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 11 port(s)

Overview

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

Rear Panel I/O Ports

USB Ports	2 x USB-C 4 1 x USB-C 3.2 7 x USB 3.1 1 x USB 2.0
DisplayPorts	Yes - via USB-C 4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	2 x RJ-45
DisplayPort(s)	1 x DisplayPort IN
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supporting 1 port) 1 x USB 3.0 header (supporting 2 ports) 3 x USB 2.0 headers (supporting 6 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 5 x Chassis fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x Thermal Sensor header

Memory

Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD X870E
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek S1220A

Warranty

3 Years

Network

Integrated Network	Marvel AQtion Intel
Network Speeds Supported	Marvel: Up to 10 Gbps Intel: Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 6.5 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11
Windows 10 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x CPU Over Voltage
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

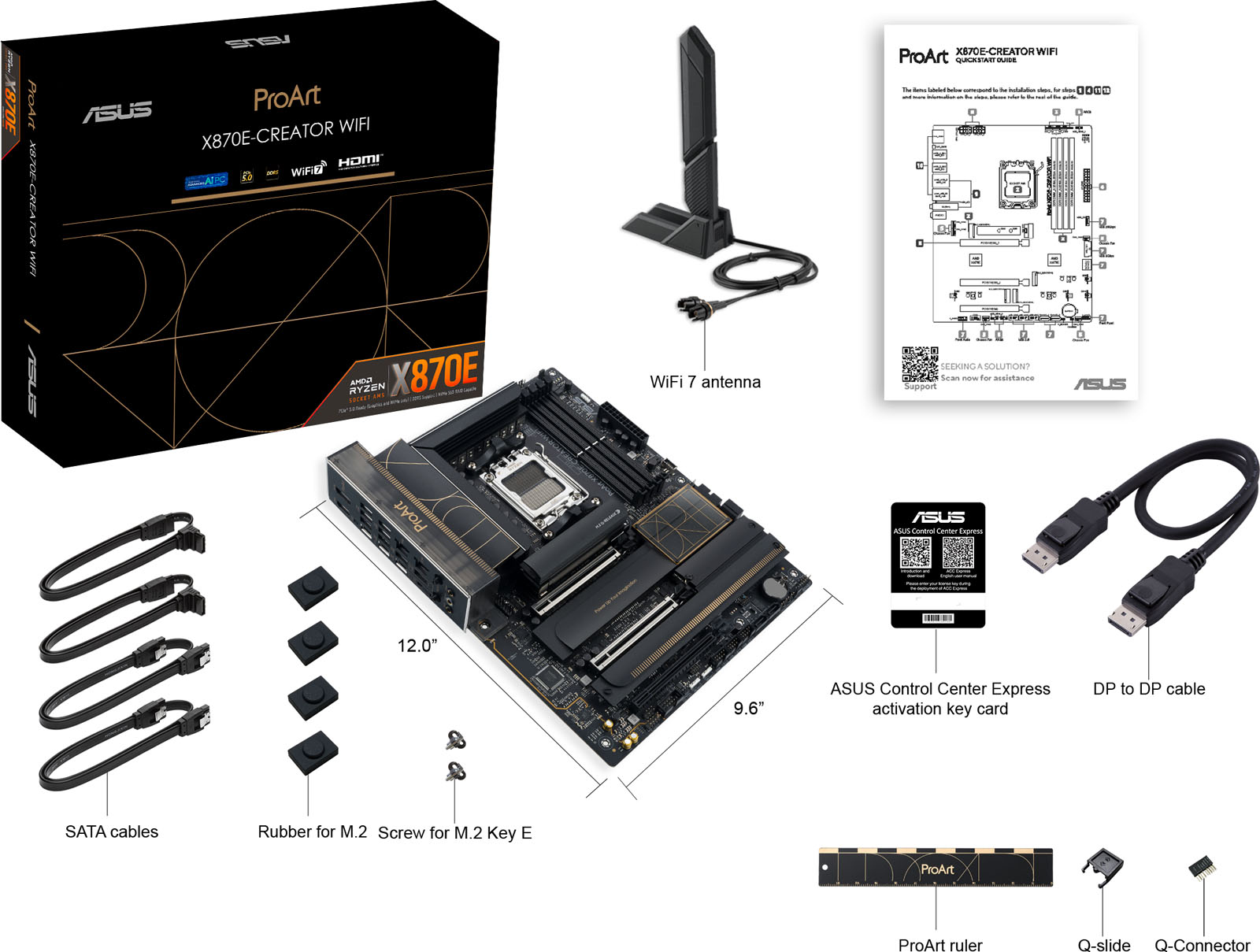

In The Box	Motherboard 1 x DisplayPort cable 4 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler 1 x Quick start guide 1 x ACC Express Activation Key Card 1 x User guide
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	11 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD X870E
Thunderbolt	No
Motherboard Model	ASUS ProArt X870E-Creator WiFi
WiFi Speed	6500 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	6
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
