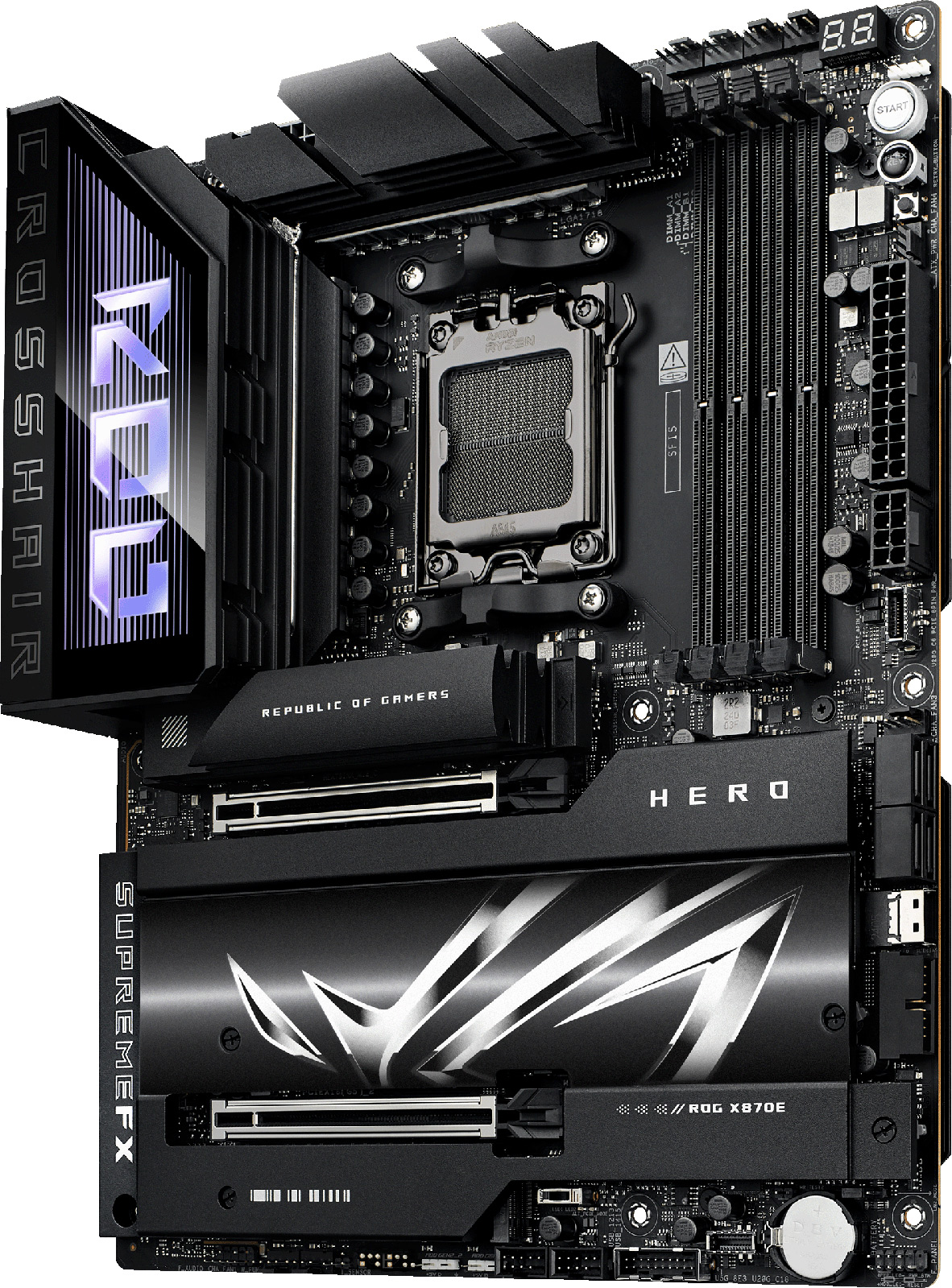

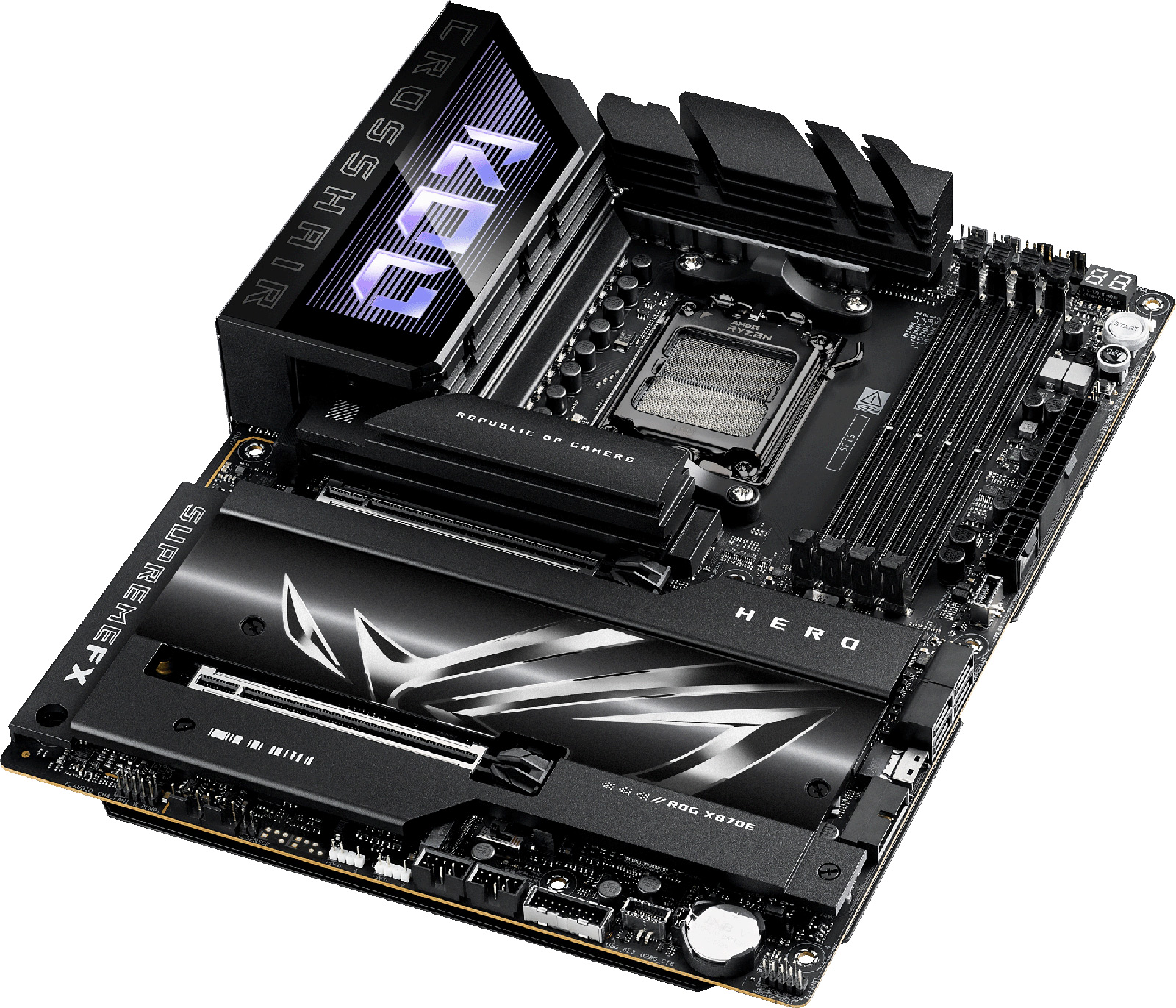

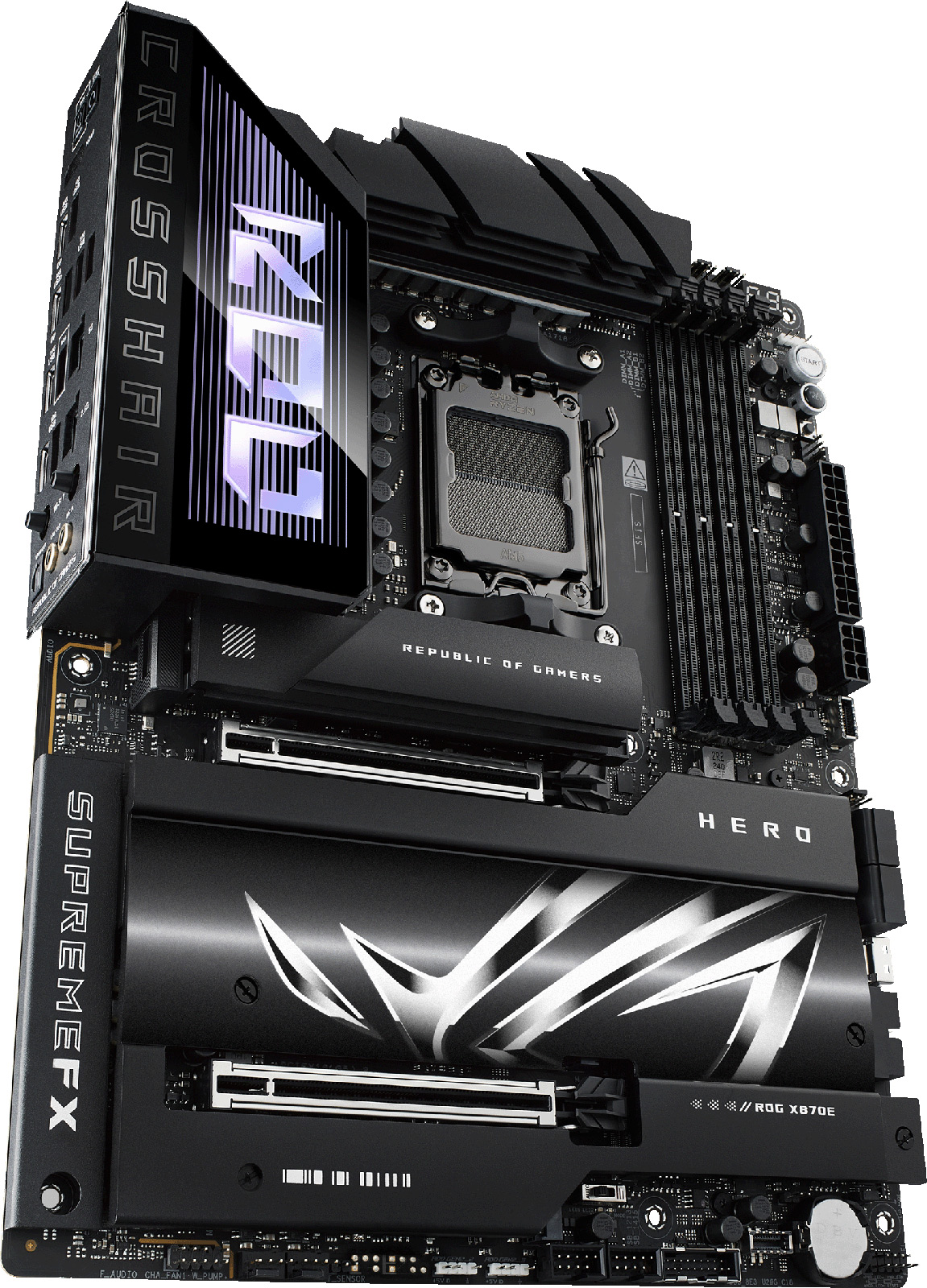

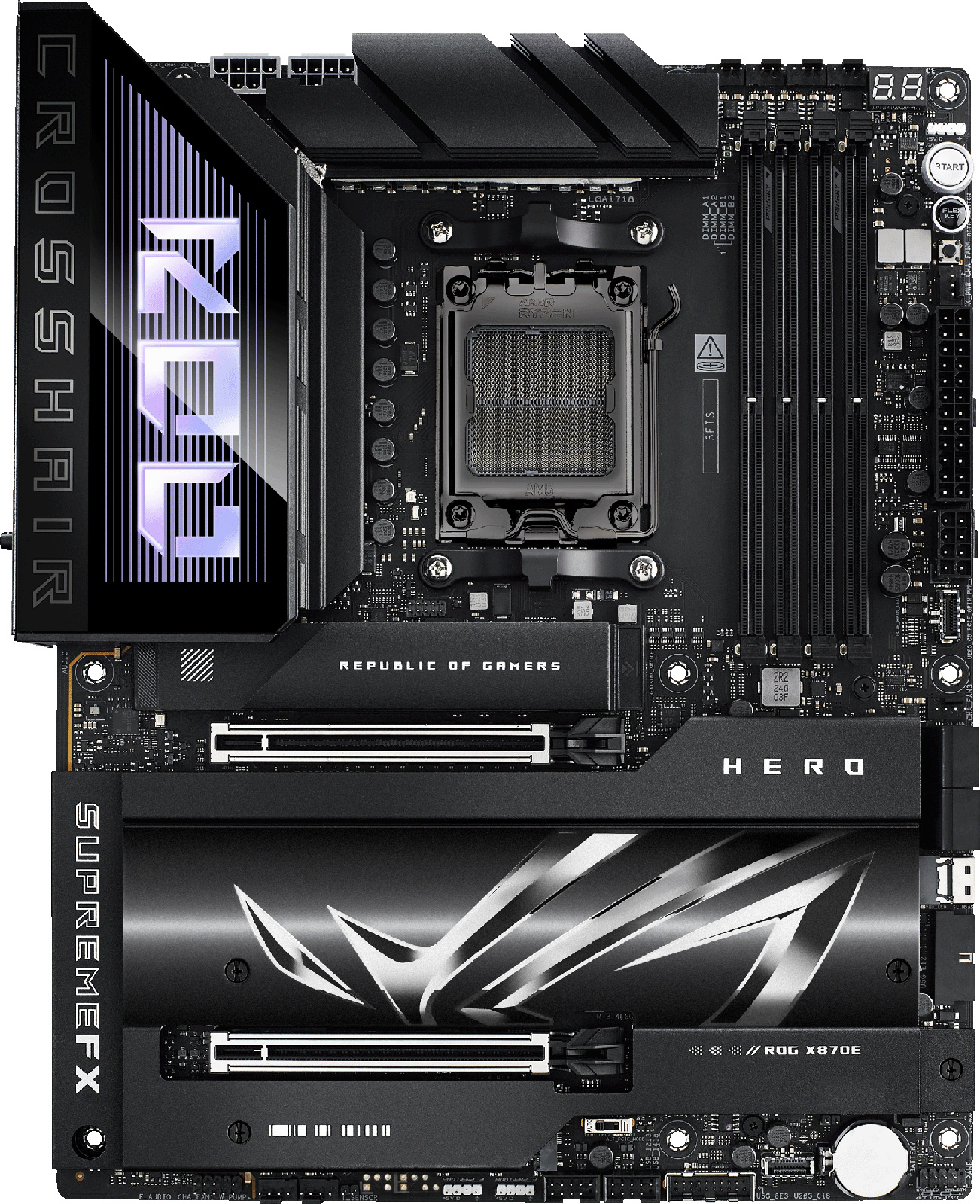

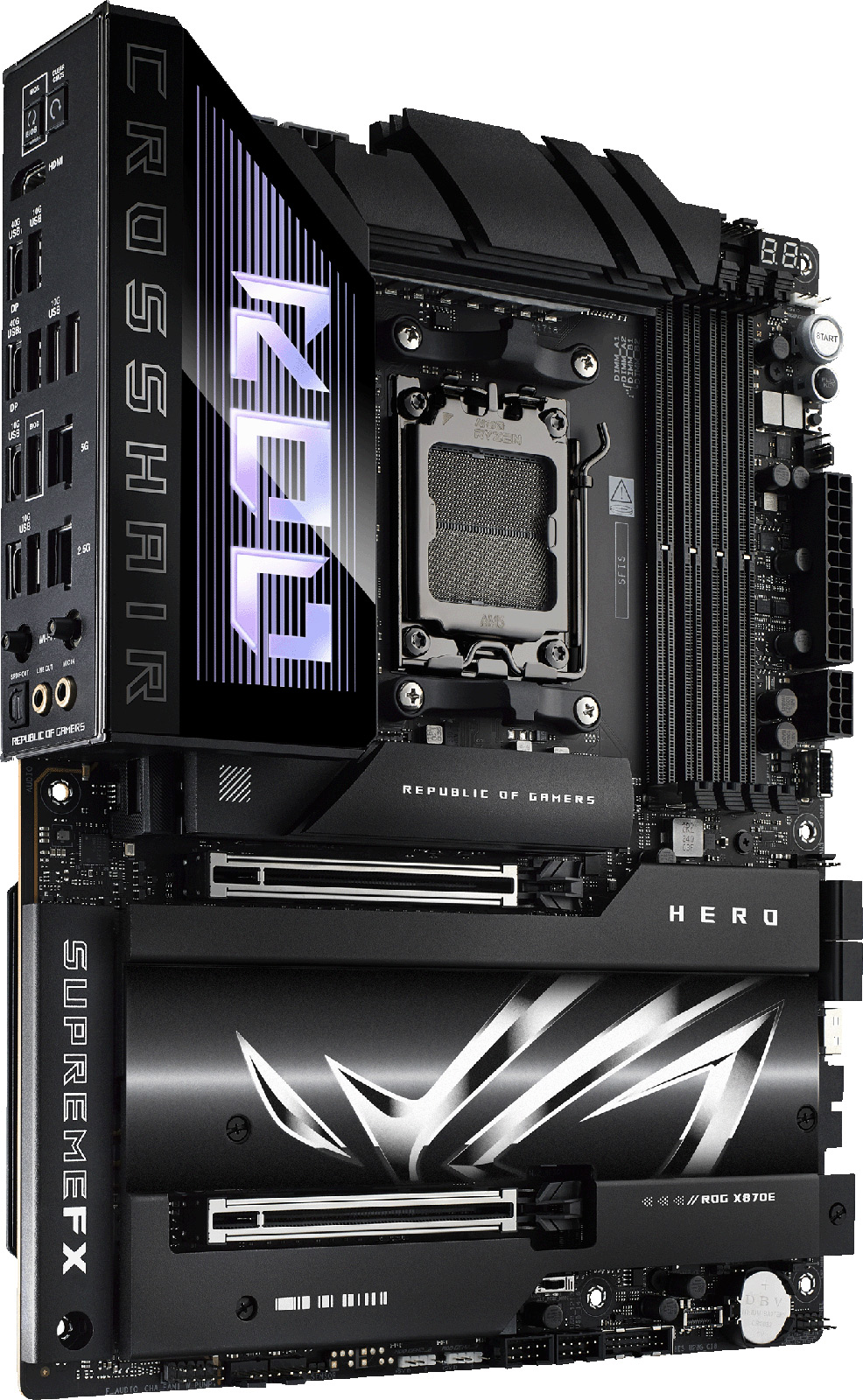

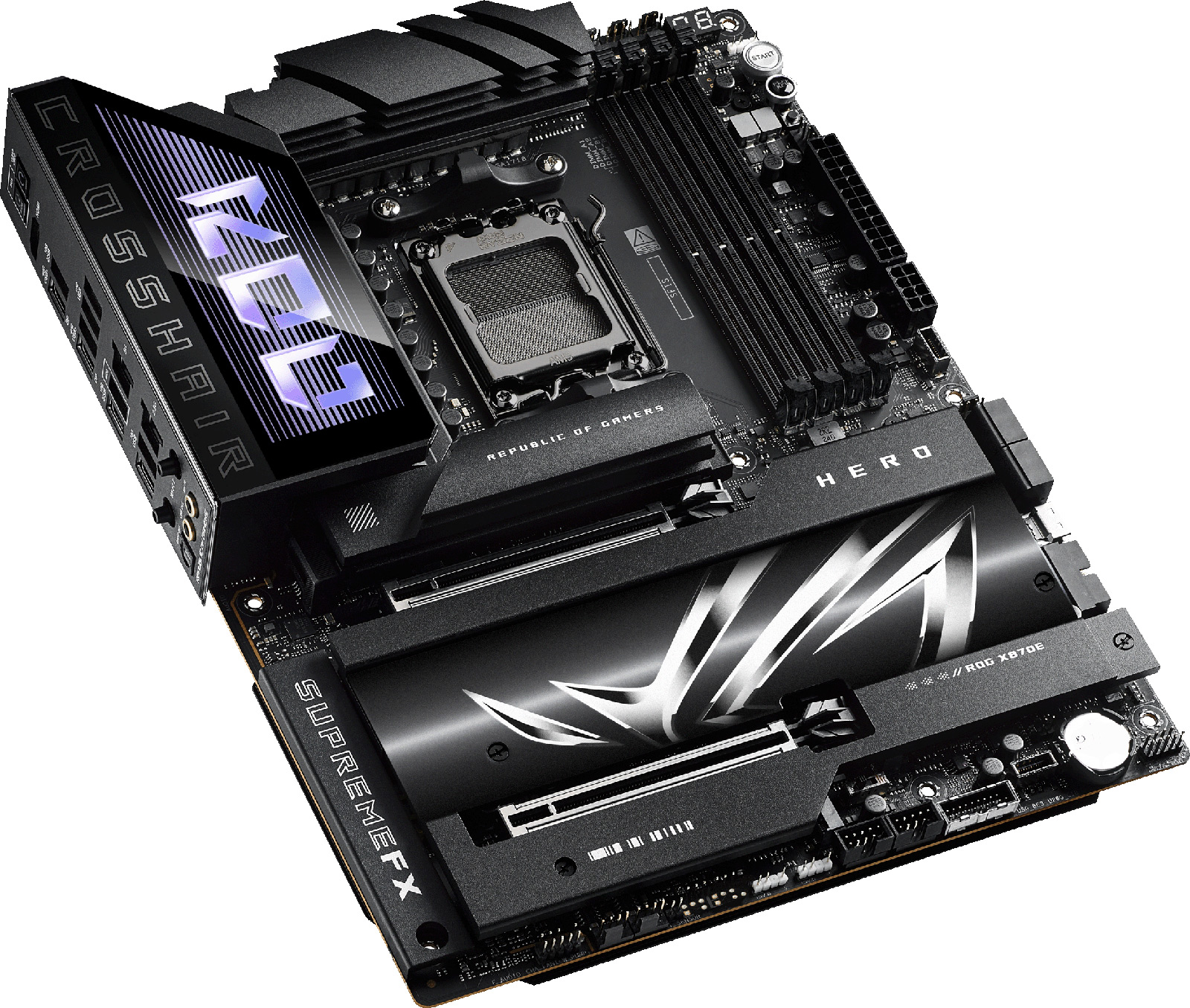

ASUS ROG Crosshair X870E Hero ATX Motherboard for AMD AM5 CPUs

Compare

ASUS ROG Crosshair X870E Hero ATX Motherboard for AMD AM5 CPUs

90MB1IE0-M0EAY0

Key Features:

Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 192GB)
Storage: 5 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 10 port(s)

ASUS ROG Crosshair X870E Hero ATX Motherboard for AMD AM5 CPUs

90MB1IE0-M0EAY0

Was £565.98

SAVE £111

Now only

£453.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

7 In Stock Now

Order within

CCL Code: MBD3698

Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 192GB)
Storage: 5 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 10 port(s)

Overview

The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.

Promotions

Build it your way – and save!

Add products from 3 or more different categories and get 5% off your total when you use code BUY3GET5 at checkout.

Terms & Conditions apply.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components and excludes graphics cards. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From Thursday 6th November 2025 whilst stocks last.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	MD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

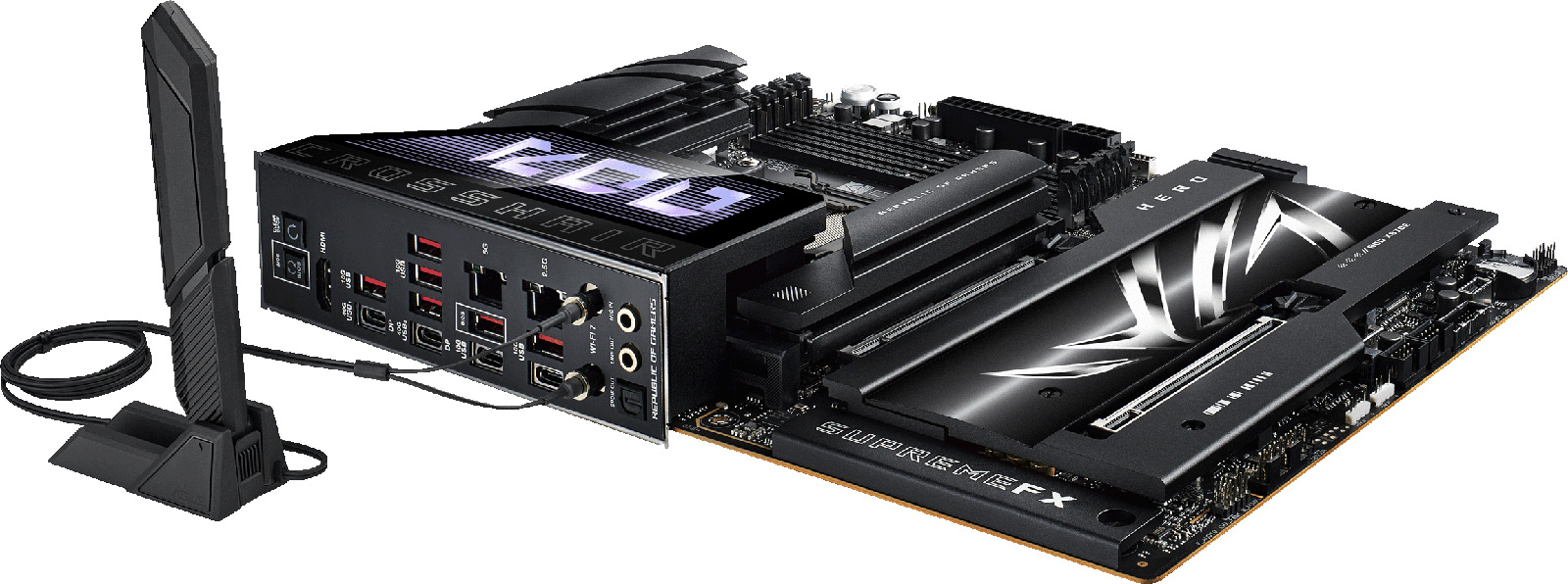

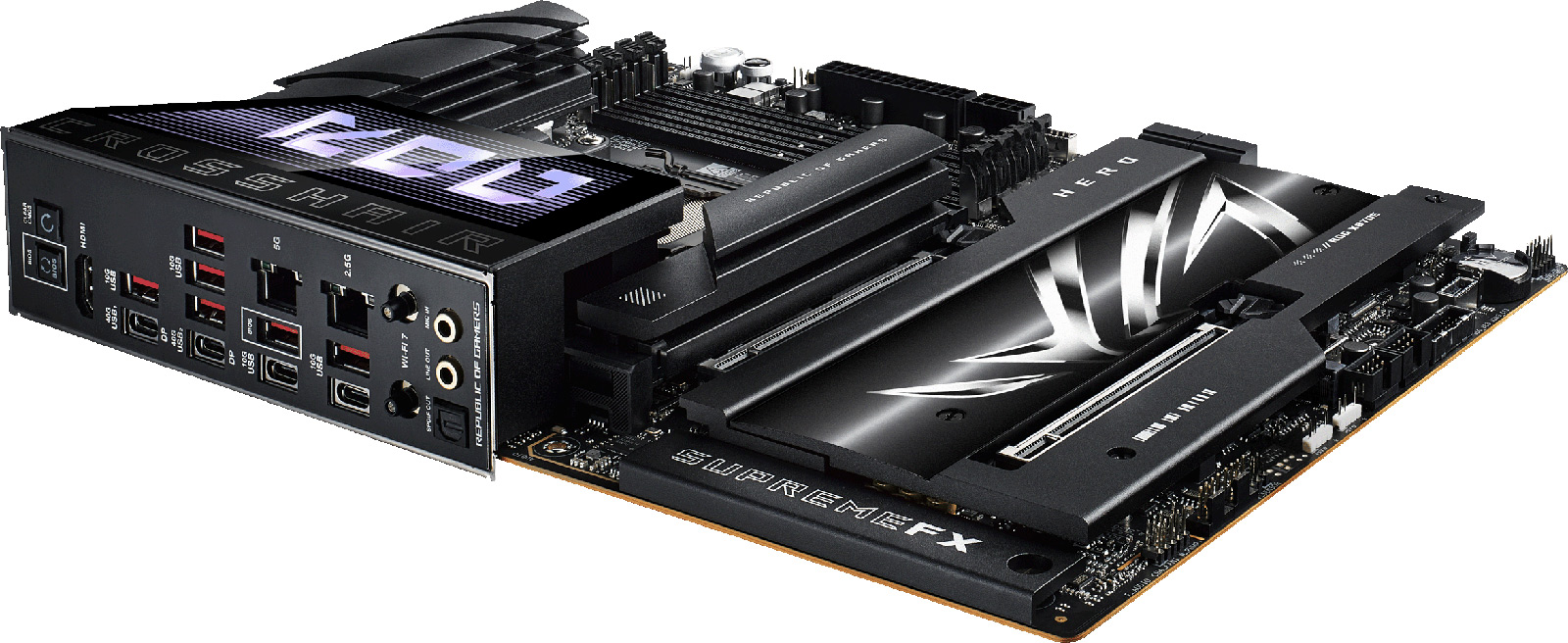

Rear Panel I/O Ports

USB Ports	2 x USB-C 4 2 x USB-C 3.2 6 x USB 3.2
DisplayPorts	Yes - supported via USB-C 4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	2 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	2 x USB-C 3.2 headers (supporting 2 ports) 2 x USB 3.0 headers (supporting 4 ports) 2 x USB 2.0 headers (supporting 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers 1 x W_PUMP+ header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe
Other Connectors	3 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD X870E
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4082

Warranty

3 Years

Network

Integrated Network	Realtek Intel
Network Speeds Supported	Realtek: Up to 5 Gbps Intel: Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 6.5 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11
Windows 10 64-bit

System

BIOS	256Mb Flash ROM UEFI AMI BIOS
Jumpers	1 x LN2 Mode
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
In The Box	Motherboard 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener 1 x USB drive with utilities and drivers 1 x Quick start guide
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD X870E
Thunderbolt	No
Motherboard Model	ASUS ROG Crosshair X870E Hero
WiFi Speed	6500 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	16
PCI Express Power Pins (female)	8
Total M.2 Slots	5
Maximum NVMe M.2 ports	5
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	2
Back Connect Support	No
