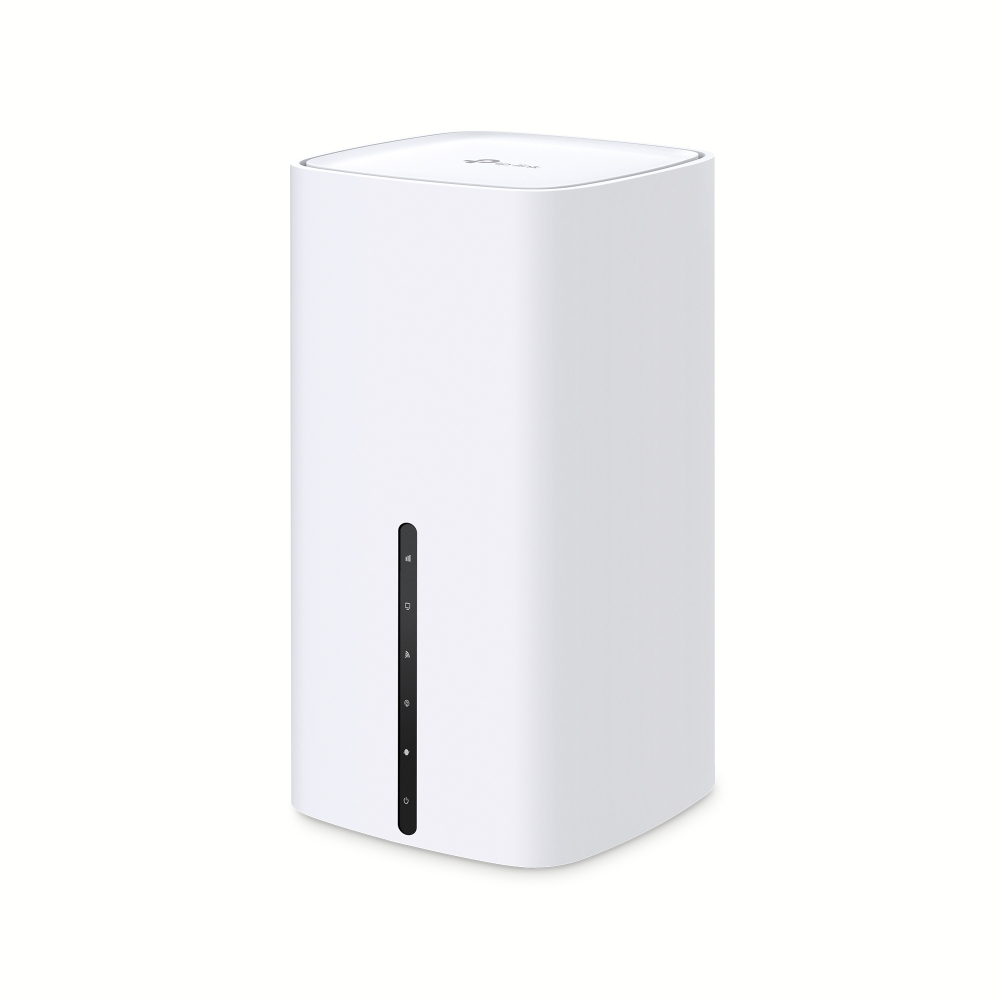

TP-Link Archer NX200 V1 5G AX1800 Wireless Dual-Band Gigabit Router

Compare

TP-Link Archer NX200 V1 5G AX1800 Wireless Dual-Band Gigabit Router

Archer NX200

Key Features:

Wireless Type: Wi-Fi 6
Number of LAN Ports: 2
Port Speed: 10/100/1000Mbps
USB Port(s): No
WPS Support: Yes

Blazing-fast 5G Wi-Fi 6 router with dual-band AX1800 speeds, gigabit ports & EasyMesh support.

A fast and flexible 5G Wi-Fi 6 router with dual-band AX1800 speeds, nano-SIM support, gigabit ports, EasyMesh compatibility, and WPA3 security - ideal for reliable home or office connectivity.

TP-Link Archer NX200 V1 5G AX1800 Wireless Dual-Band Gigabit Router

Archer NX200

£214.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Monday 1st December

Order within

CCL Code: NET4805

Wireless Type: Wi-Fi 6
Number of LAN Ports: 2
Port Speed: 10/100/1000Mbps
USB Port(s): No
WPS Support: Yes

Overview

Stay connected at next-generation speeds with the Archer NX200, a powerful 5G Wi-Fi 6 router designed for both home and office use. With blazing-fast 5G mobile broadband (up to 4.67 Gbps) and dual-band Wi-Fi 6 (AX1800), this router delivers smoother streaming, faster downloads, and lower latency for gaming and video calls.

Insert a nano-SIM card to instantly share 5G/4G internet across your network, or use the gigabit WAN port for fixed broadband connections. Equipped with advanced Wi-Fi 6 technology, the Archer NX200 supports OFDMA, MU-MIMO, and 1024-QAM to efficiently handle multiple devices at once, ensuring reliable performance for the whole household.

For extended coverage, the router works with TP-Link EasyMesh devices to eliminate dead zones and provide seamless whole-home Wi-Fi. With robust WPA3 security, gigabit LAN ports, and external antenna support, it’s built for flexibility, performance, and peace of mind.

Main Features

Super-fast 5G speeds up to 4.67 Gbps (backward compatible with 4G LTE).
Dual-band Wi-Fi 6: 1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz.
EasyMesh support for seamless whole-home coverage.
1ž Gigabit WAN/LAN + 2ž Gigabit LAN ports.
Nano-SIM slot for mobile connectivity.
Advanced WPA3 encryption and security features.

Specifications

Router

Router Type

5G AX1800 Wireless Dual-Band Gigabit Router

WAN

WAN Protocols	Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
WAN Signalling	IP over Ethernet, PPP
WAN Standards	5G NR, 4G LTE (FDD/TDD), 3G UMTS/HSPA+

Wireless LAN

Antenna Type	8 x internal 5G/LTE antennas, 2 x internal Wi-Fi antennas, 2 x external SMA-F connectors
Range (Outdoor - Maximum)	Dependent on 5G/4G network; Wi-Fi range typical for dual-band AX1800 (up to ~100m outdoors, ~30m indoors)
Transmit Power	<23 dBm (5.15-5.35 GHz), <30 dBm (5.47-5.71 GHz), <20 dBm (2.4 GHz)
Data Transfer Rates	5 GHz: 1201 Mbps, 2.4 GHz: 574 Mbps, 5G download: up to 4.67 Gbps
Encryption	64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK/WPA2-PSK
Frequency Band	2.4 GHz & 5 GHz Wi-Fi; 5G NR bands N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78; LTE bands B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
Number of channels	2.4 GHz: 1-13 (region-specific), 5 GHz: 36-165 (region-specific)
Operating Frequency	2.4 GHz, 5 GHz Wi-Fi; 700 MHz-3700 MHz (5G/LTE bands)
Spreading	OFDMA, MU-MIMO (Wi-Fi 6), DSSS/OFDM (legacy)
Modulation Technique	BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
IEEE 802.11	Supported
a	Yes (5 GHz)
b	Yes (2.4 GHz)
g	Yes (2.4 GHz)
h	Yes (DFS compliance in 5 GHz)
n	Yes (2.4 GHz & 5 GHz)
u	Yes (network discovery, roaming support)
ac	Yes (5 GHz)
ax	Yes (Wi-Fi 6, 2.4 GHz & 5 GHz)
IEEE 802.11a	Supported
IEEE 802.11b	Supported
IEEE 802.11e	Supported (QoS/WMM)
IEEE 802.11g	Supported
IEEE 802.11h	Supported (DFS/TPC in 5 GHz band)
IEEE 802.11n	Supported (2.4 GHz & 5 GHz)
Range (Indoor - Maximum)	~30 m indoors (environment dependent)
Templ	Operating: 0 øC ~ 40 øC; Storage: -40 øC ~ 70 øC
Receive Sensitivity	2.4 GHz: up to -78 dBm; 5 GHz: up to -80 dBm (varies by modulation, see datasheet)

Telecommunications

Impedance	50 O (standard RF antenna interface, SMA-F connectors)
Active Inbound Call Switching for POTS	Not Supported
Lifeline Support	Not Supported
DTMF Dialling	Not Supported
Internal Ring	Not Supported
Loop Start Signaling	Not Supported
DTMF Detect and Remove	Not Supported
G.711 Compression	Not Supported
G.726 Compression	Not Supported
G.729ab Compression	Not Supported
G.168 Echo Cancellation	Not Supported
A-law, U-law Encoding	Not Supported
Fax/Data Detect and Support	Not Supported
Universal CP Tone Detect	Not Supported
Voice Activity Detect	Not Supported
Signaling	Not Supported
Silence Reconstruction	Not Supported
Packet Loss Compensation	Not Supported (no VoIP features)
Caller ID Transmit/Receive	Not Supported
Caller ID on Call Waiting	Not Supported
Flash on/off Hook	Not Supported
3 Way Call	Not Supported
Silence Suppression	Not Supported
Software Standards	IPv4, IPv6, TCP/IP, DHCP, NAT, VPN (PPTP, L2TP, IPSec, OpenVPN), QoS, UPnP, EasyMesh
DTMF	Not Supported

Performance

Throughput	Wi-Fi: 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz); 5G: up to 4.67 Gbps (DL)
IP Packet Routing	Supported (Static/Dynamic IP, NAT, DHCP, IPv4/IPv6 routing)
Packet Forwarding Rate	Up to 1 Gbps (limited by Gigabit LAN ports)
Topology	Star / Mesh (EasyMesh-supported)
MTBF	> 50,000 hours (typical for consumer networking equipment, TP-Link doesn't specify exact)

Security

VPN Pass Through/Multi-Sessions	Supported: PPTP, L2TP, IPSec, OpenVPN
User Authentication	Password login, TP-Link ID (Cloud), WPA/WPA2/WPA3 for Wi-Fi
Security	WPA/WPA2/WPA3 encryption, SPI firewall, DoS protection, Access Control, IP/MAC binding, Guest Network
Firewall Filtering	Stateful Packet Inspection (SPI), DoS protection, IP & MAC binding, Access Control
VPN	PPTP, L2TP, IPSec, OpenVPN
VPN Client Sessions	Multiple (exact max not published by TP-Link, supports concurrent VPN connections)
Site to Site VPN Policies	Supported via IPSec/OpenVPN

Ethernet

Protocols Supported	IPv4, IPv6, TCP/IP, DHCP, NAT, PPTP, L2TP, IPSec, OpenVPN, UPnP
Ethernet Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Flow Control	IEEE 802.3x (Full Duplex)

Interfaces/Ports

10/100-BaseT Port Capacity	0 (all ports are Gigabit)
10/100-Base-TX Port Capacity	0 (all ports are Gigabit)
ADSL Interface	Not Supported
Serial Ports	None
Console Port	None
ATM25 Interface	Not Supported

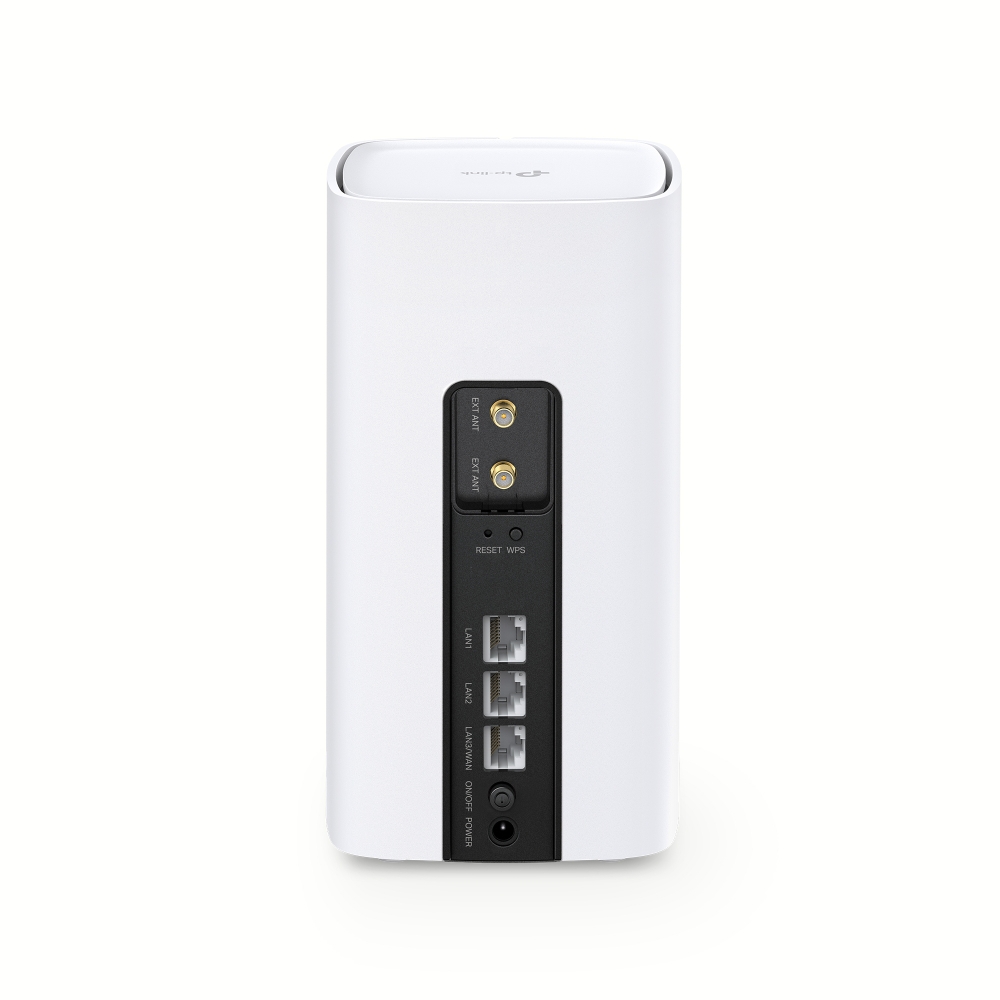

WAN Ports	1 ž 10/100/1000 Mbps LAN/WAN (RJ45), plus Nano-SIM slot for 5G/4G
Number of WAN Ports	1 (Ethernet), 1 (Nano-SIM for mobile WAN)
WAN Port Connector	RJ45 (Ethernet) + Nano-SIM slot (for 5G/4G WAN)
WAN Port Speed	10/100/1000 Mbps (Gigabit)
WAN Port Protocol	IPv4, IPv6, PPPoE, Dynamic IP, Static IP, PPTP, L2TP
LAN Ports	2 x 10/100/1000 Mbps RJ45
Number of LAN Ports	2 port(s)
LAN Port Connector	RJ-45
LAN Port Speed	10/100/1000 Mbps (Gigabit)
LAN Port Protocol	Ethernet (IEEE 802.3, 802.3u, 802.3ab)
Parallel Ports	None
USB Ports	None
Full Duplex Capabilities	Yes (IEEE 802.3x flow control, full/half duplex)
VoIP Ports	None
Telephone Ports	None
Auxiliary Ports	2 ž SMA-F external antenna connectors (for 5G/LTE)
Modem Port	Nano-SIM slot (for built-in 5G/4G modem)
Serial ATA Ports	None
WAN Autosensing	Yes (auto-detects WAN type on RJ45 Gigabit WAN port)
LAN Autosensing	Yes (auto-negotiation 10/100/1000 Mbps on LAN ports)
LAN Ports	2 x Gigabit RJ45

Environmental

Noise Level (full operating mode)	Fanless, 0 dB (silent operation)
Operating Humidity	10%-90% non-condensing
Operating Temperature	0 øC ~ 40 øC (32 øF ~ 104 øF)
Noise Level (full operating mode)	0 dB (fanless, silent)
Heat Dissipation	Passive (no fan, vented chassis)

Memory

Memory Maximum	Not Expandable
Memory Type	DDR3 (assumed, not published)
Flash Memory	Same as above - Not Published
Memory Slot	None (integrated, not upgradeable)

Physical

Form Factor	Desktop Tower (190 mm tall)
Form Factor	Desktop Tower (99 x 99 x 190 mm)
Case Colour	White
LED Status Indicators	Power, Internet, LAN, Wi-Fi, Signal Strength
Rack Units	Not Rack-Mountable
In The Box	Archer NX200 Router, Power Adapter (12 V/2 A), RJ45 Ethernet Cable, Quick Installation Guide
Width	99 mm (3.9 in)
Depth	99 mm (3.9 in)
Height	190 mm (7.5 in)
Weight	~0.6 kg (net weight, device only)
Notes	Dimensions and weight exclude packaging; shipping weight ~0.98-1.2 kg depending on region

Storage

Internal Storage	None
Number of Storage Units	0
Storage Unit Capacity	None

Expansion

Number of Slots	0
Expansion Slots	None
Wan Interface Cards	Not Supported (integrated only)

Compliance

Safety	CE, RoHS
EMI	CE EMC compliance, EN55032/EN55024 (region-dependent)
Immunity	CE standards (EN61000 series)
Standards	IEEE 802.11ax/ac/n/g/b/a, IEEE 802.3/3u/3ab

System

Management	TP-Link Tether App, Web UI (HTTP/HTTPS), TP-Link Cloud, Remote Management
Administration	Web interface, App, Remote login, Cloud account
Resiliency/Redundancy	WAN failover: mobile (5G/4G) ? wired (Ethernet)
Convergence/Prioritising	QoS, Bandwidth Control, Device/Application prioritisation
Operating System	Proprietary TP-Link Router OS (embedded)
Clients	Supports up to ~64+ simultaneous devices (typical Wi-Fi 6 capacity, depends on environment)
Router Modes	5G/4G Router, Wireless Router, Access Point

System Requirements

System Requirements	Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, macOS, Linux, UNIX; Browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+
Browser Support	IE 11+, Firefox 12+, Chrome 20+, Safari 4+, any modern Java-enabled browser
Operating Systems Supported	Windows, macOS, Linux, UNIX (for client devices)

Electrical

DC Input Voltage	12 VDC
Power Adaptor Type	External AC to DC adapter
Power Adaptor Output	12 VDC / 2 A
AC Input Current	0.6 A
AC Input Voltage	100-240 V ~ 50/60 Hz
Electrical Frequency	50/60 Hz
Maximum Power Consumption	~24 W (12 V ž 2 A)
Redundant Power Supplies	None
Power over Ethernet (PoE)	Not Supported
DC Input Voltage	12 VDC
Power over Ethernet (PoE) Standards	Not Supported
Power Cord	Included with external power adapter
Battery	None

Shipping

Shipping Pallet Quantity	Not Published (varies by distributor)
Pallet Product Quantity	Not Published
Shipping Carton Quantity	1 unit per carton (retail box)
Shipping Carton Product Quantity	1
SC Width	250 mm
SC Depth	150 mm
SC Height	120 mm
SC Weight	0.98-1.2 kg (gross shipping weight)
Trade Carton	1 unit per trade carton
Trade Carton Product Quantity	1
TC Width	250 mm
TC Depth	150 mm
TC Height	120 mm
TC Weight	0.98-1.2 kg

Identifiers

EC Commodity Code	851762 (Machines for reception, conversion, and transmission of data - routers)
ISPC Code	43222609 (UNSPSC - Network Routers)

Attributes

PCMCIA Slots

None

Key Features

RF Network Standard	IEEE 802.11 a/b/g/n/ac
Wireless Network	Yes
Main Colour	White
Includes Microfilter	No
WPS Support	Yes
USB Peripheral Connection	No
Mesh Wi-Fi	Mesh Routers
Type	Home
