ASUS Radeon RX 9060 XT Dual 16GB GDDR6 Graphics Card

Compare

ASUS Radeon RX 9060 XT Dual 16GB GDDR6 Graphics Card

90YV0LG2-M0NA00

Key Features:

16GB GDDR6 Graphics Memory
PCI Express 5.0 x16 Interface
Outputs - HDMI and Display Port

ASUS Radeon RX 9060 XT Dual 16GB GDDR6 Graphics Card

90YV0LG2-M0NA00

£363.99 inc VAT

Add to Basket

Available for delivery from Tomorrow

or Click & Collect from Today

Hurry, only 3 left!

Order within

CCL Code: VGA7543

16GB GDDR6 Graphics Memory
PCI Express 5.0 x16 Interface
Outputs - HDMI and Display Port

Overview

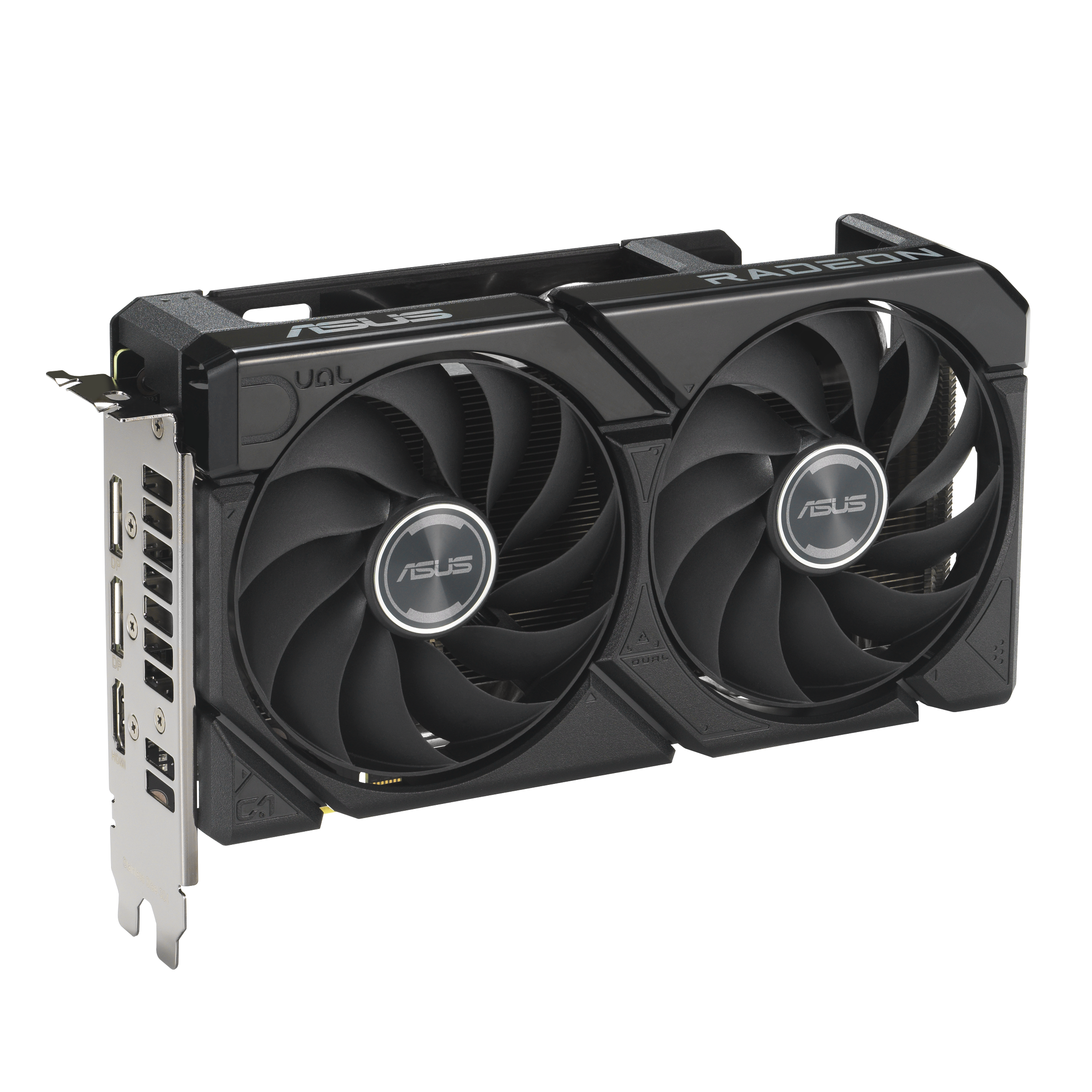

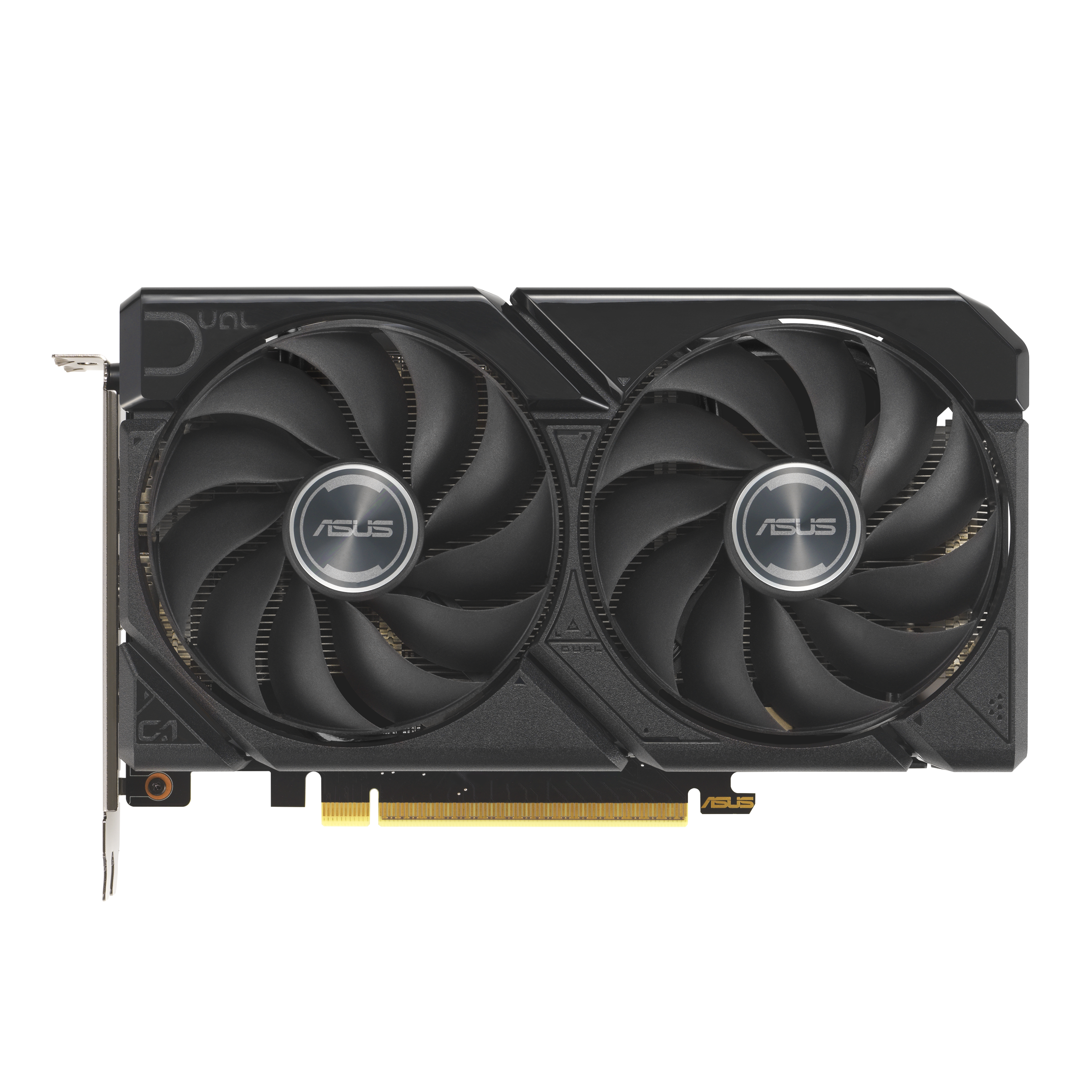

ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Specifications

GPU

Chipset Manufacturer	AMD
Chipset Model Name	Radeon RX
Chipset Model Number	9060 XT
Chipset Additional Information	Dual
Boost Chip Clock	3230 MHz
Number of Cores	2048

Memory

Memory Size	16384 MB
Memory Clock	20 Gbps
Memory Type	GDDR6
Memory Width	128 bit
Memory Bandwidth	322 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16
HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 8-pin PCIe
Power Consumption	160 W
Recomended Power Supply	550 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card Thank You Card Speedsetup Manual
Width	49 mm (2.5 slot)
Depth	202 mm
Height	120 mm
Weight	0.601 kg

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x16
Config Gaming x8 (CB/CCL)	No
Graphics Memory Type	GDDR6
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
AMD Radeon	RX 9060 XT
PCIe Pin Type	6+2-Pin
FreeSync	Yes
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	AMD
GPU Length	202 mm
Card Width	3
Power Requirement (auto)	160 W
GPU Power (TDP)	160 W
Graphics card count	1
PCI Express Power Pins (female)	8
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
