MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card

MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card

CCL Code: VGA7430

Sold out

Notify Me
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card
  • MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card

MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card

G5060-8V2C

Key Features:

  • 8GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphics Card

G5060-8V2C

CCL Code: VGA7430
  • 8GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

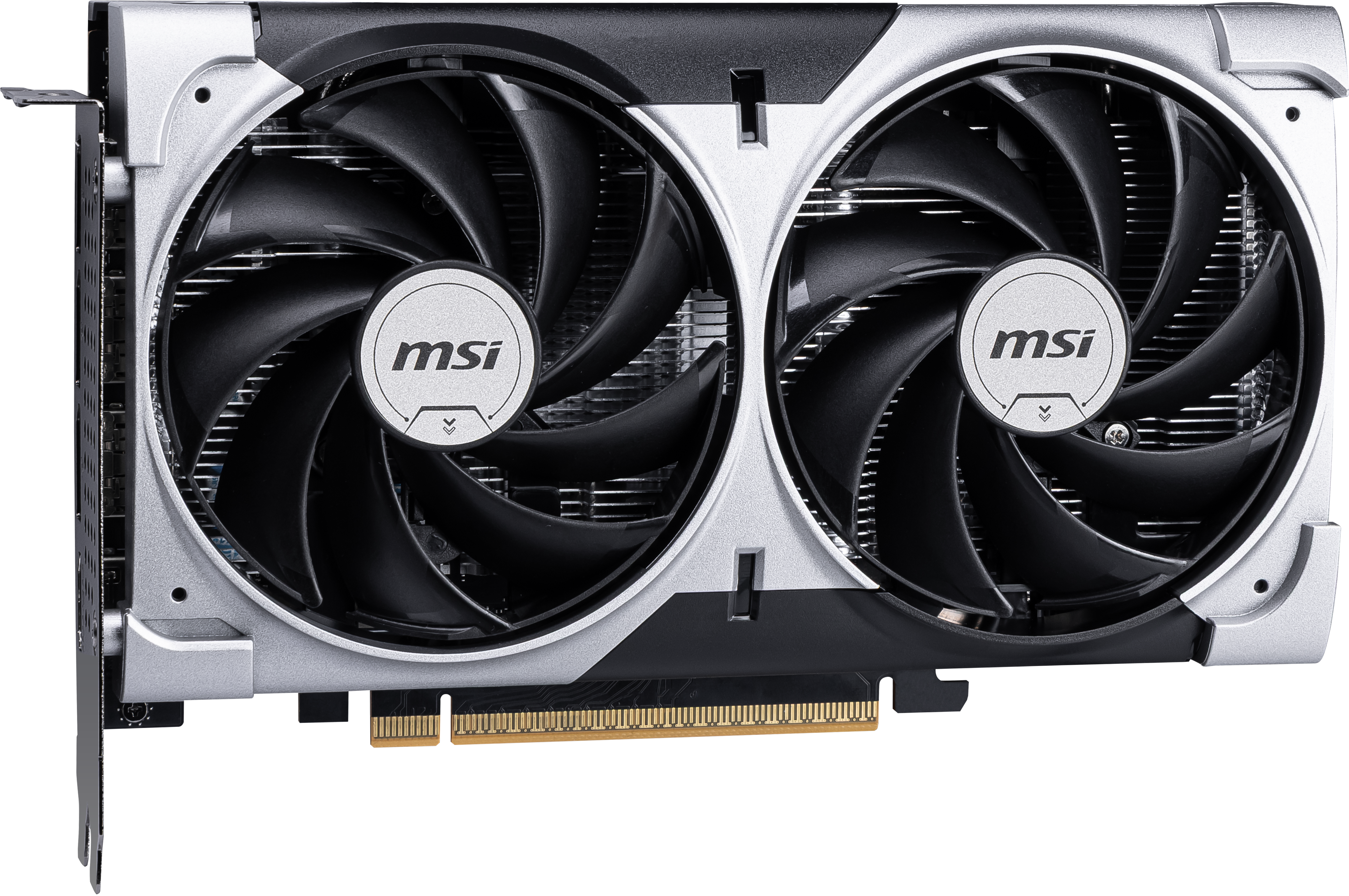

DUAL-FAN THERMAL DESIGN

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5060
Chipset Additional Information VENTUS 2X OC
Boost Chip Clock 2527 MHz
Number of Cores 3840
Graphics Core CUDA

Memory

Memory Size 8192 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 128 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x8

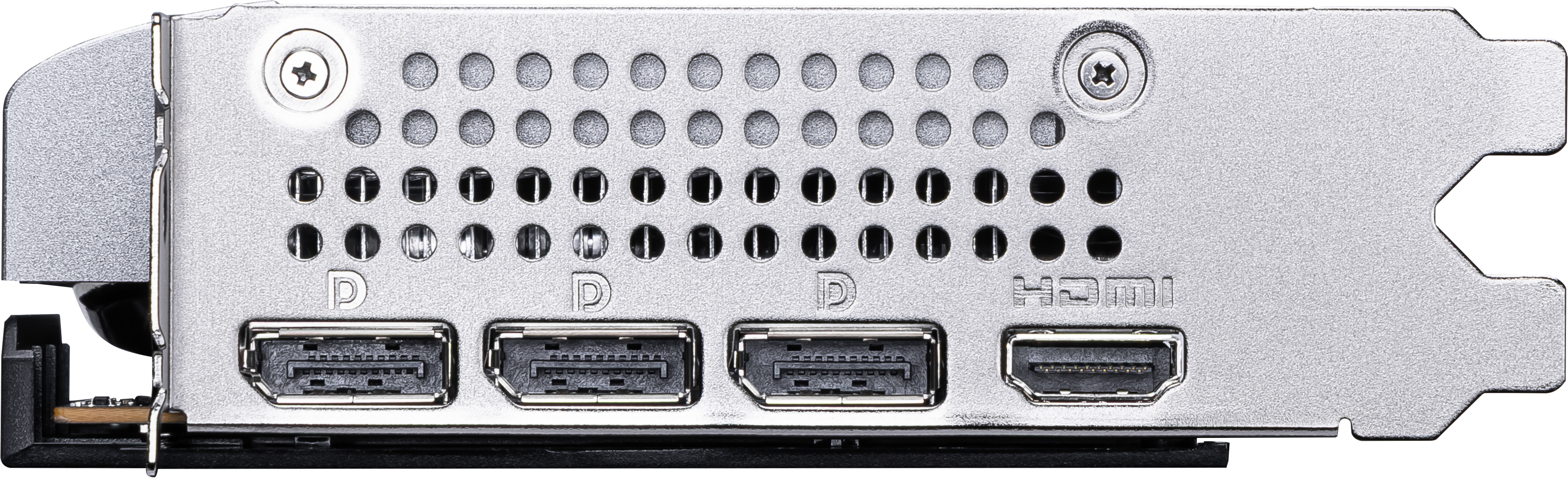

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

Electrical

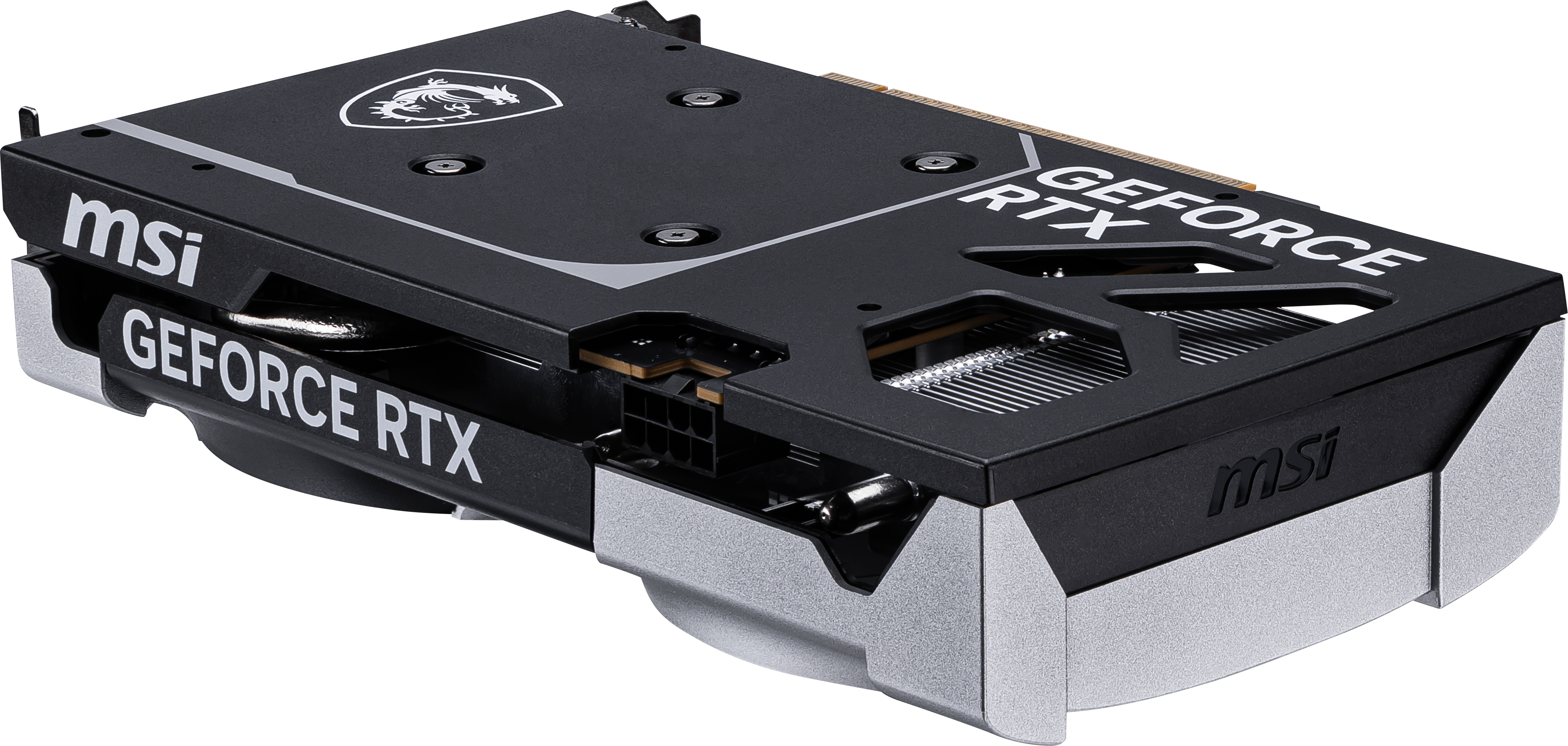

Power Connector 1 x 8-pin PCIe
Power Consumption 145 W
Recomended Power Supply 550 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 41 mm (Dual Slot)
Depth 197 mm
Height 120 mm
Weight 511 g

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x8
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5060
PCIe Pin Type 6+2-Pin
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 197 mm
Card Width 2
Power Requirement (auto) 145 W
GPU Power (TDP) 145 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No

Graphics

Graphics Chipset GeForce RTX 5060

Graphics Device

G-Sync Yes

Item Details

Manufacturer MSI
Manufacturer Code G5060-8V2C
Alternative Part Number G5060-V2C
EAN 4711377344272
UPC 824142423837
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code G5060-8V2C
