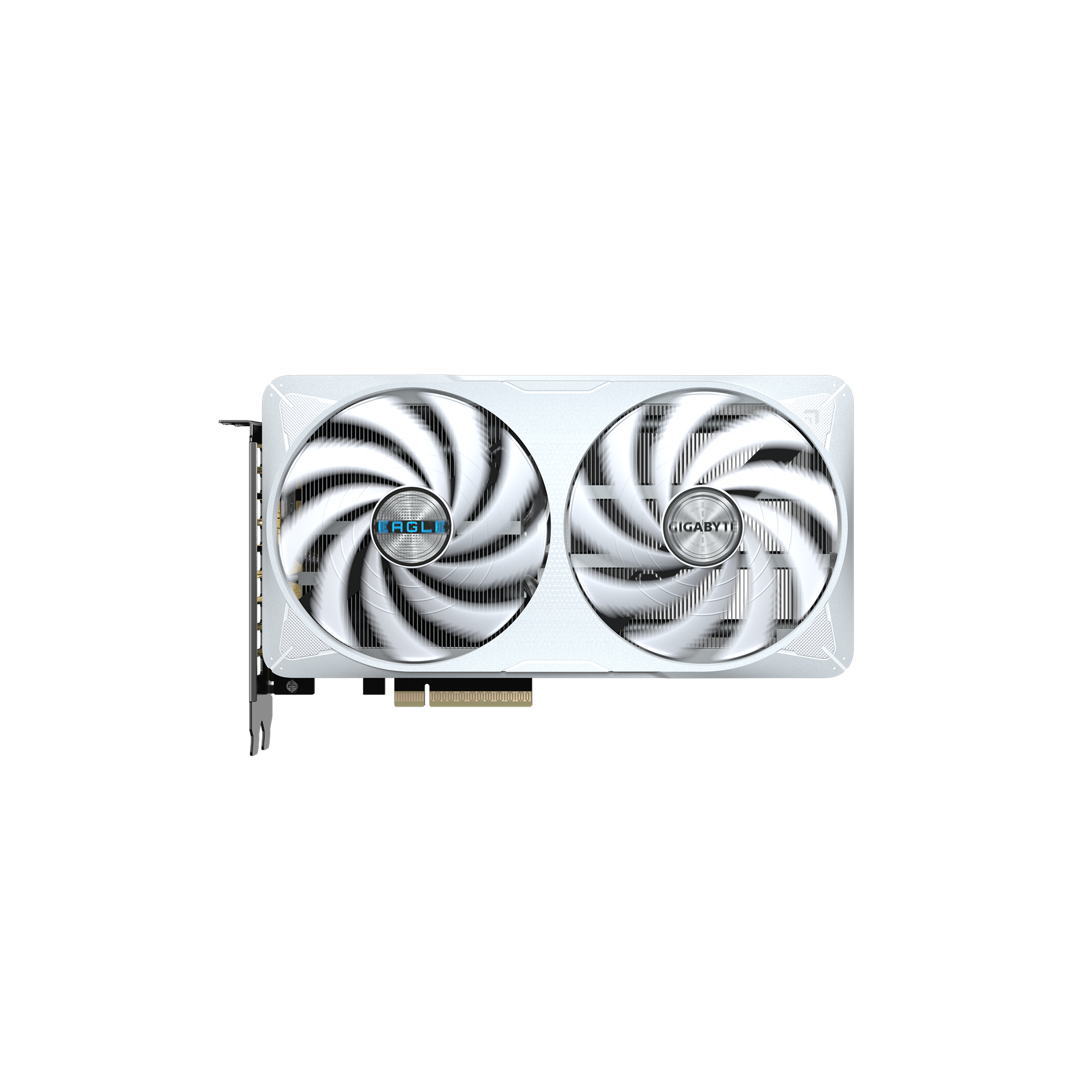

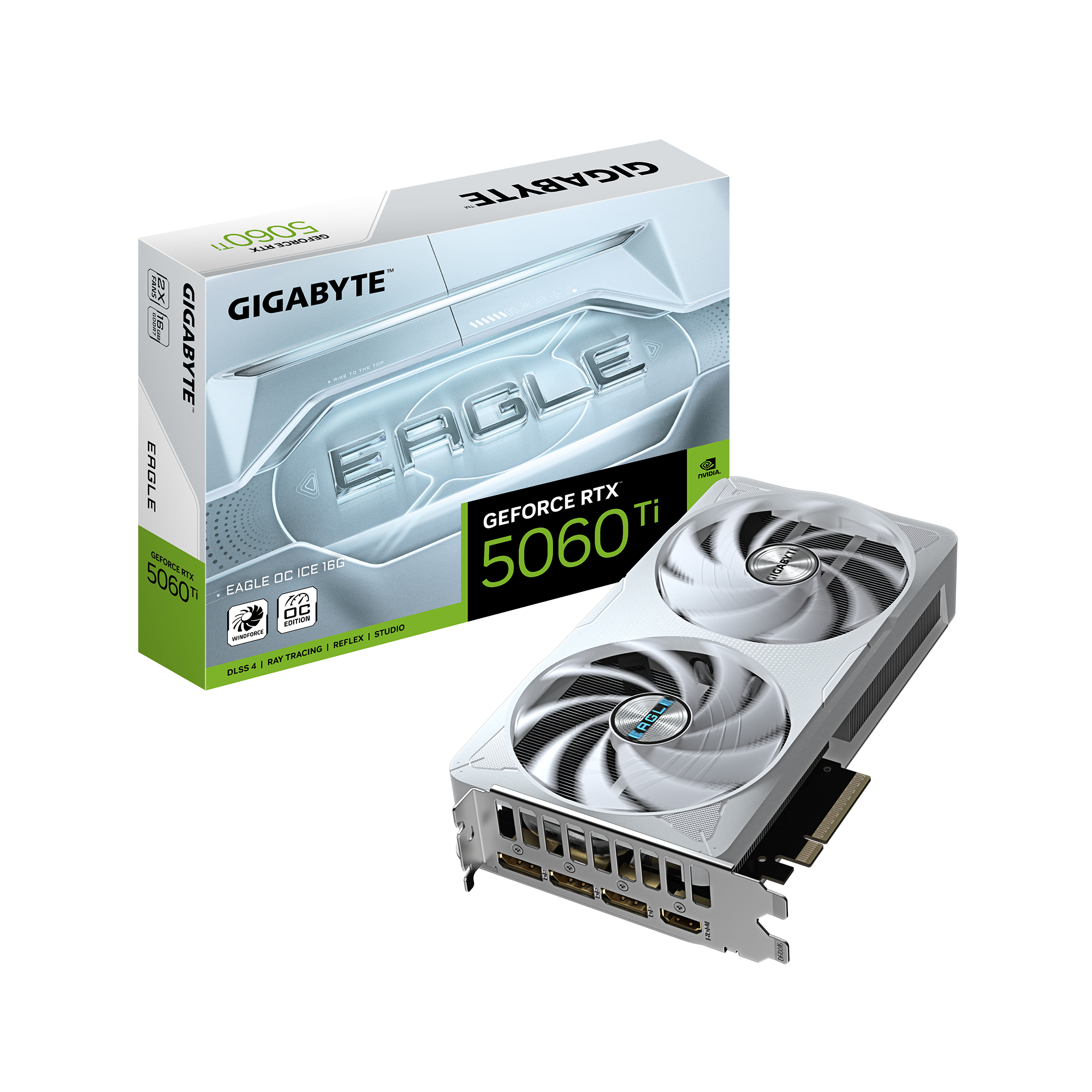

Gigabyte GeForce RTX 5060 Ti EAGLE ICE OC 16GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5060 Ti EAGLE ICE OC 16GB GDDR7 Graphics Card

CCL Code: VGA7404

£438.99 inc VAT

Gigabyte GeForce RTX 5060 Ti EAGLE ICE OC 16GB GDDR7 Graphics Card

GV-N506TEAGLEOC ICE-16GD

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

Gigabyte GeForce RTX 5060 Ti EAGLE ICE OC 16GB GDDR7 Graphics Card

GV-N506TEAGLEOC ICE-16GD

£438.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

10+ In Stock Now

Order within

CCL Code: VGA7404
  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
Overview

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5060 Ti
  • Integrated with 16GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
  • Reinforced structure
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5060 Ti
Chipset Additional Information EAGLE OC ICE
Boost Chip Clock 2617 MHz
Number of Cores 4608
Graphics Core CUDA

Memory

Memory Size 16384 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 128 bit
Memory Bandwidth 448 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x8
HDMI Port 1 x HDMI 2.1b

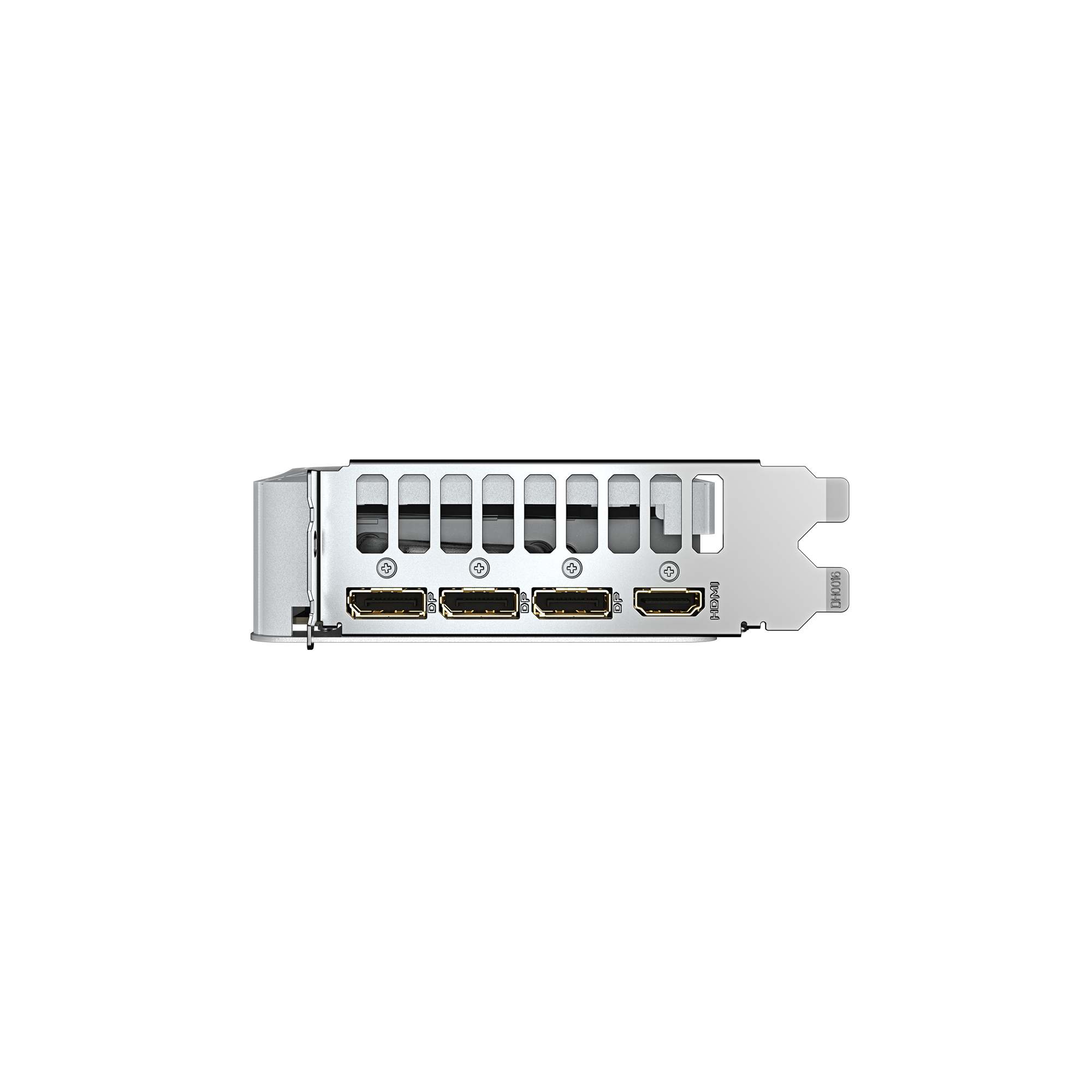

DisplayPort 3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 180 W
Recomended Power Supply 650 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Guide
Width 40 mm (Dual Slot)
Depth 215 mm
Height 122 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x8
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour White
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5060 Ti
PCIe Pin Type 6+2-Pin
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 215 mm
Card Width 2
Power Requirement (auto) 180 W
GPU Power (TDP) 180 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 8
12VHPWR 16-pin Connector No
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5060 Ti

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N506TEAGLEOC ICE-16GD
EAN 4719331356088
UPC 889523049341
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N506TEAGLEOC ICE-16GD
